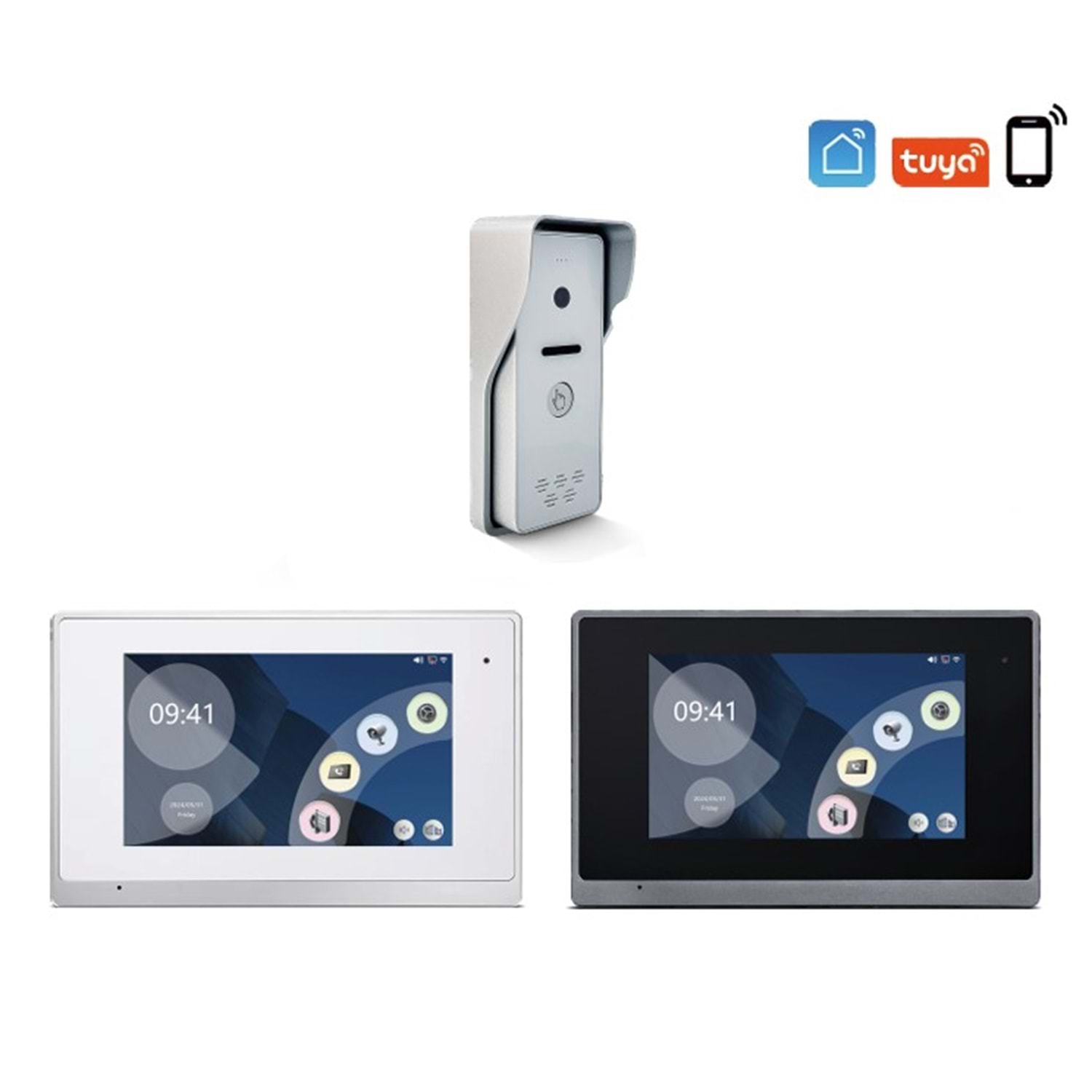

SECURITECH 2 TEL TUYA-SMART LIFE AKILLI İNTERKOM SETİ SKY-IP-M75

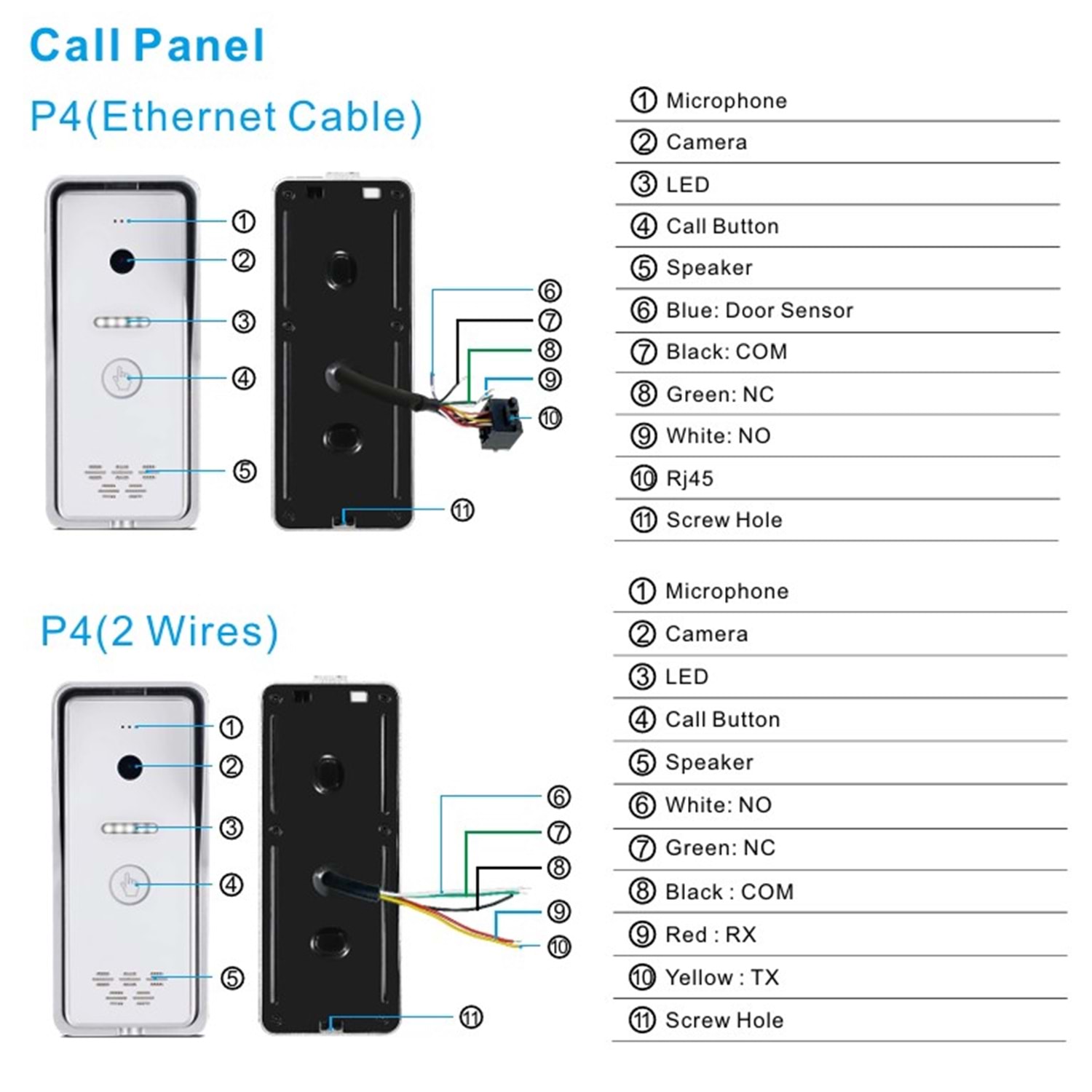

Villa Call Panel (P4)
? Material: Aluminum alloy + glass panel
? Protocol: TCP/IP

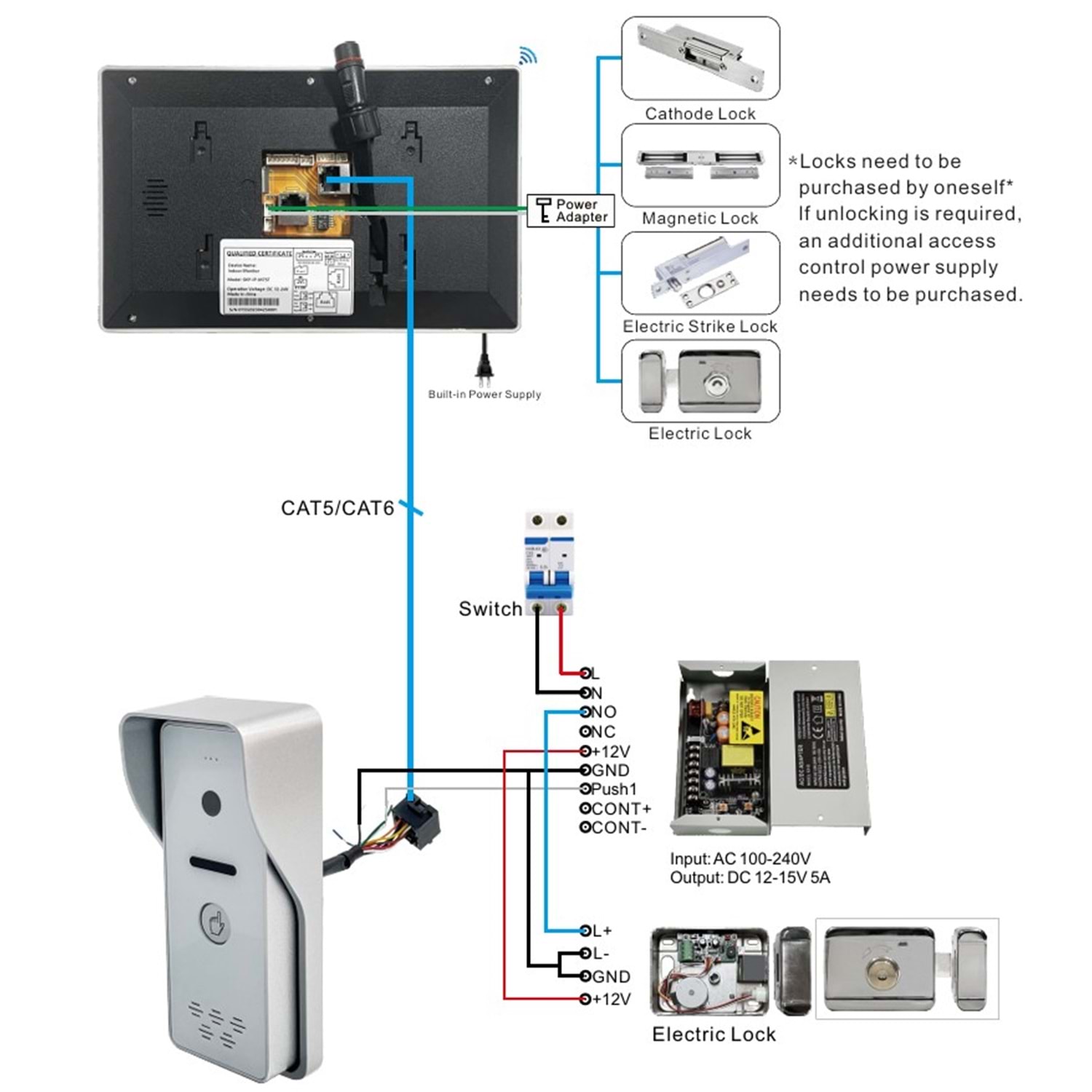

? Connection: CAT5/CAT6/2 Wires
? Interface: Rj45
? Power: Non-standard POE switch / powered from
t he indoor monitor
? Working Temperature: -40°C to +70°C
? Installation: Wall mounted
? Dimensions: 122 x 48 x 20 mm
Villa Call Panel (P901)
? Material: Aluminum alloy + glass panel
? Protocol: TCP/IP
? Connection: CAT5/CAT6/2 Wires
? Interface: Rj45
? Power: Non-standard POE switch / powered from
t he indoor monitor
? Working Temperature: -40°C to +70°C
? Installation: Wall mounted
? Dimensions: 165 x 90 x 28 mm

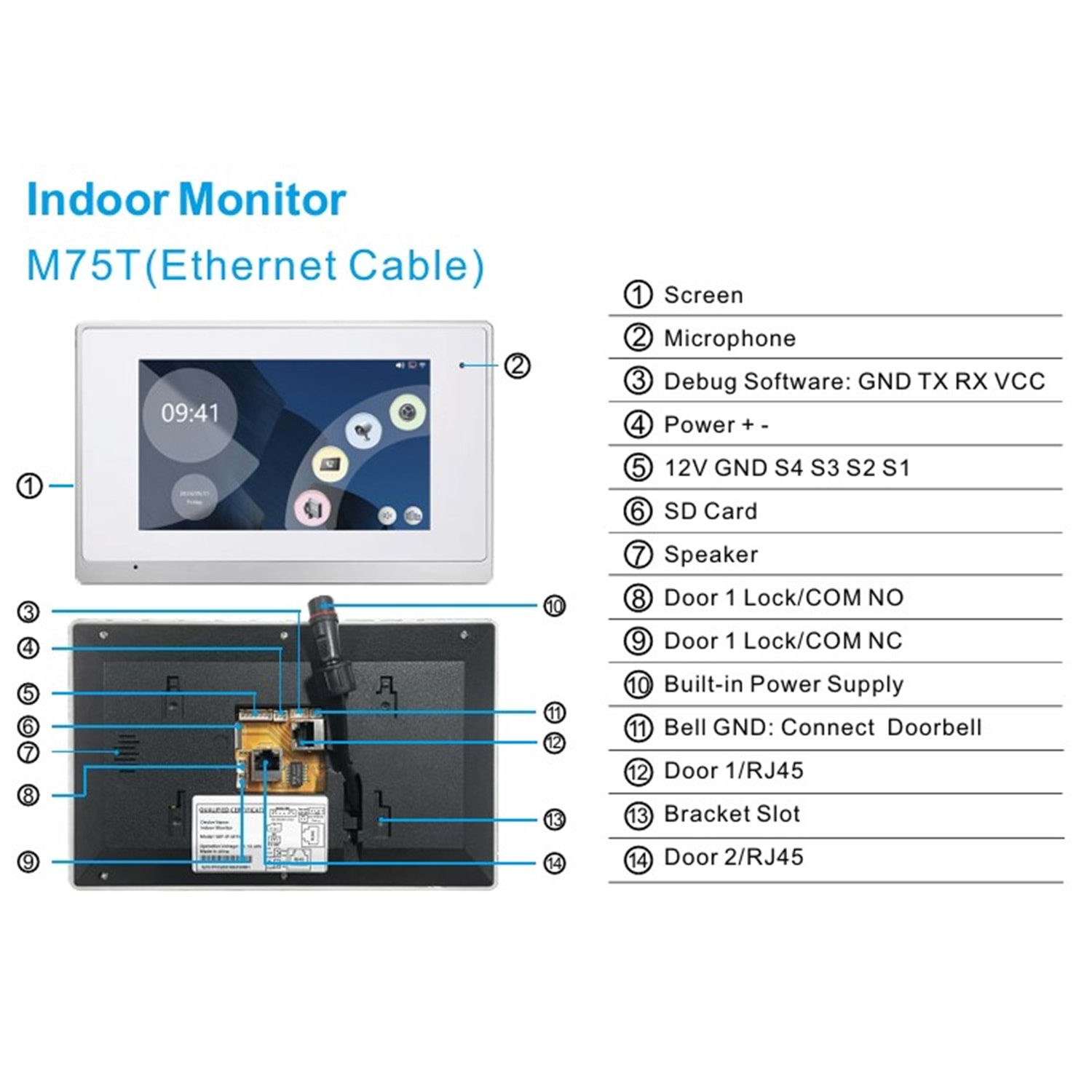

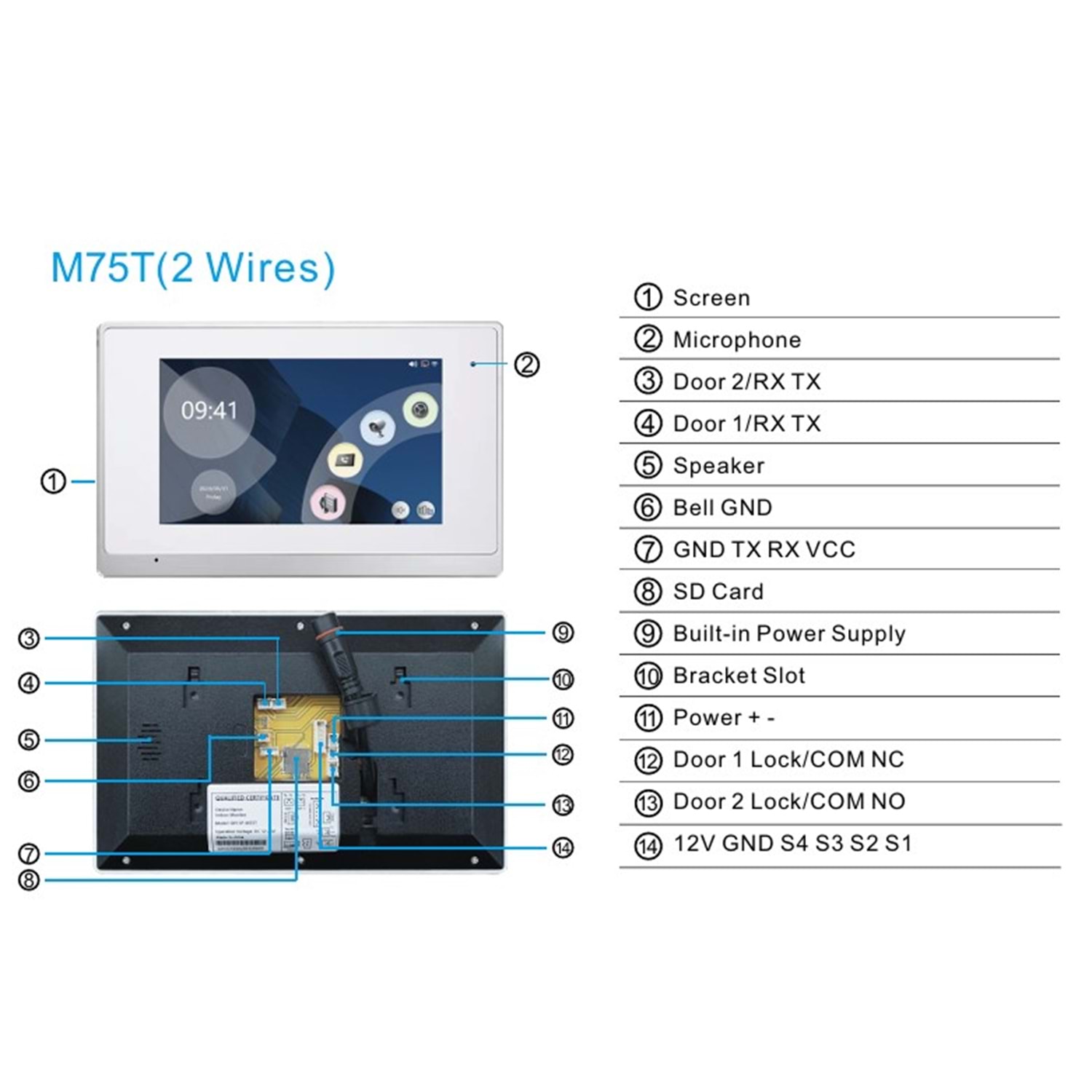

Indoor Monitor(M75T)
? Display Screen: 7-inch TFT LCD
? Resolution: 1024 x 600 pixels
? System: Linux operating system
? Network Transmission Mode: TCP/IP protocol
? Connection: CAT5/CAT6/2 Wires
? Color: White + Silver, Black + Grey / Customizable
? Language: Chinese / English / German / French / Dutch
? Material: Plastic + PC
? Power: Non-standard POE switch / Power (12-24V)
? Ethernet Interface: Rj45
? Operating Voltage: DC 12-24V
? Operating Current: ?500mA
? Operating Temperature: -30? to +60?
? Dimensions: 230 x 145 x 26 mm

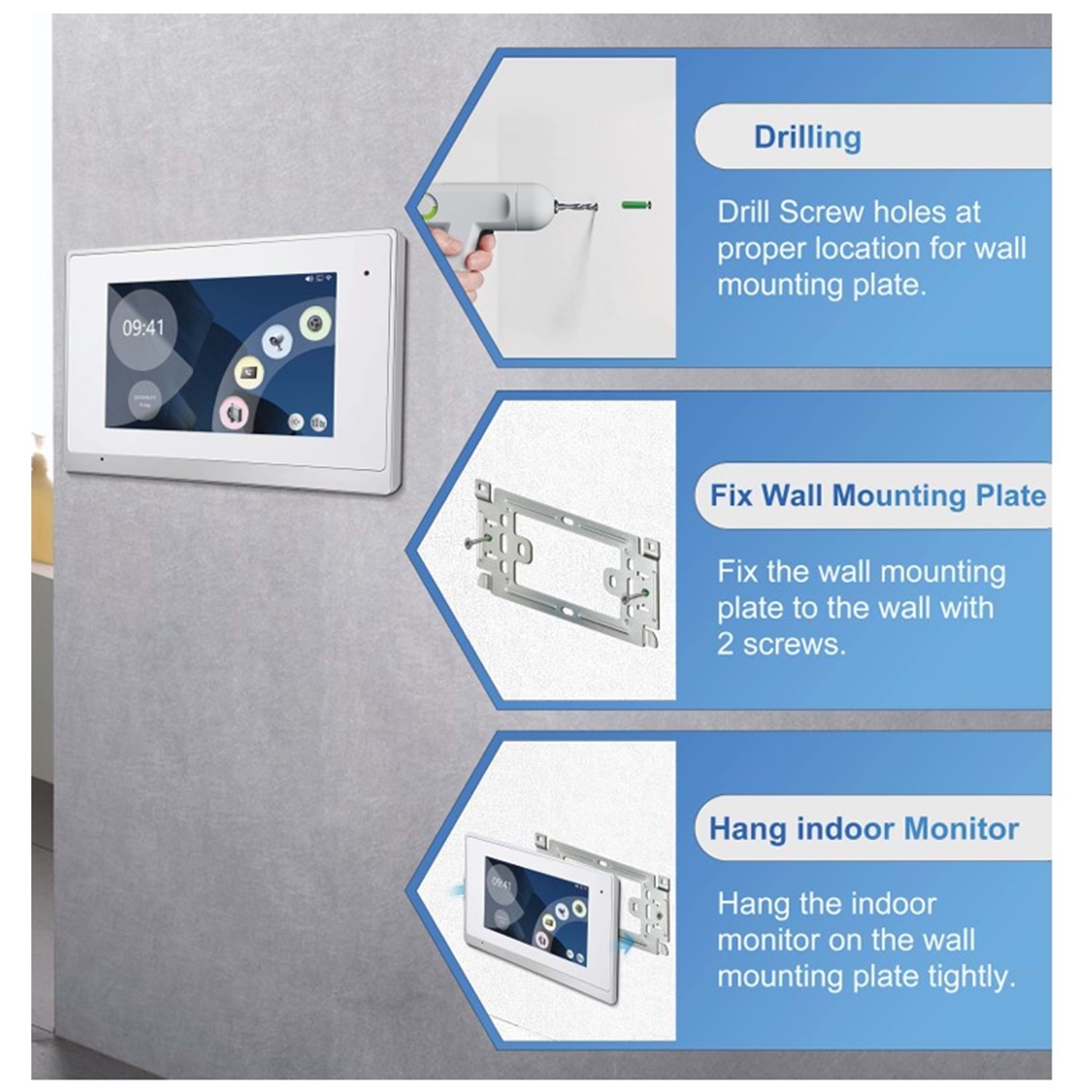

? Installation: Wall-mounted

Video Conference Call
To call the monitor, press the button on the call panel. The monitor
will display the image from the call panel. Touch the button on the
screen to answer, hang up, or unlock the door.
.

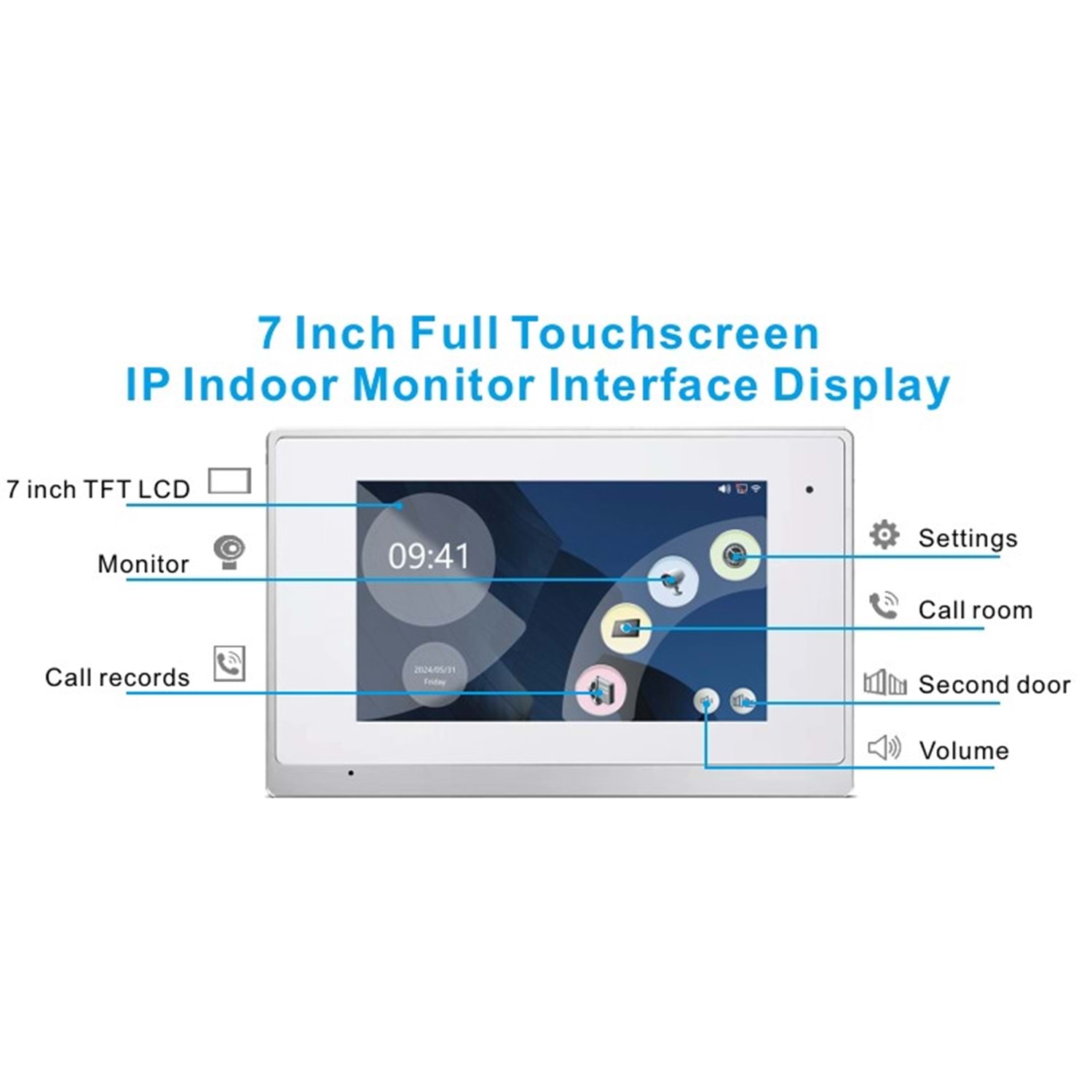

Monitor
To monitor the call panel, touch the monitor button on the screen.
Tap the call panel name to switch between call panels.
Touch the photo button to record manually.
Touch the sound button to adjust the volume.
Touch the unlock button to unlock the door.
Touch the mute button to silence the monitor.
Touch the hang-up button to end monitoring.
When a visitor calls, it will automatically take a photo or video. A
MicroSD memory card is required.

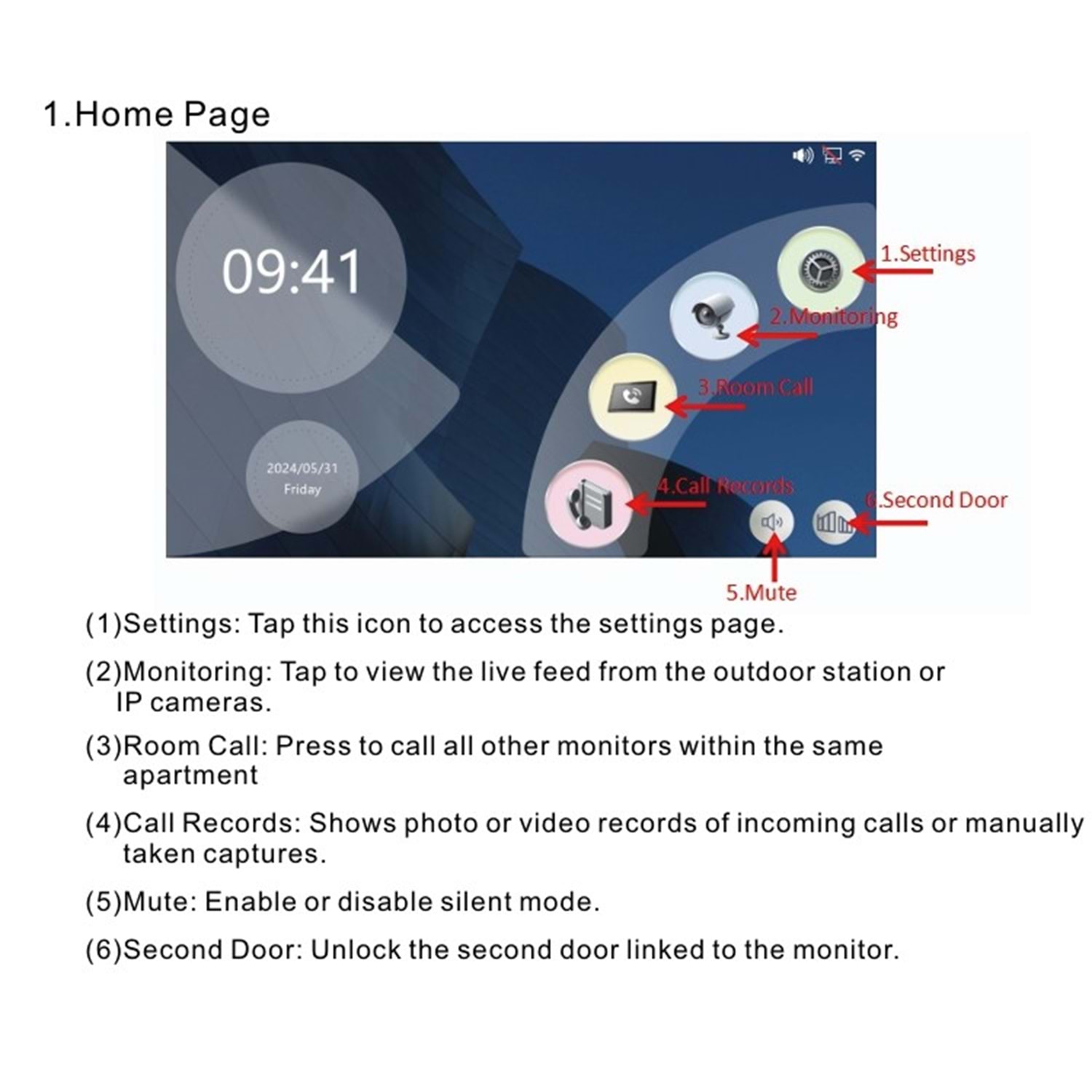

I n the homepage, there is an option to view the photo or video.
