SECURITECH 4 TEL 7 INCH EKRAN 4 TELLİ VİLLA TİPİ İNTERKOM SETİ

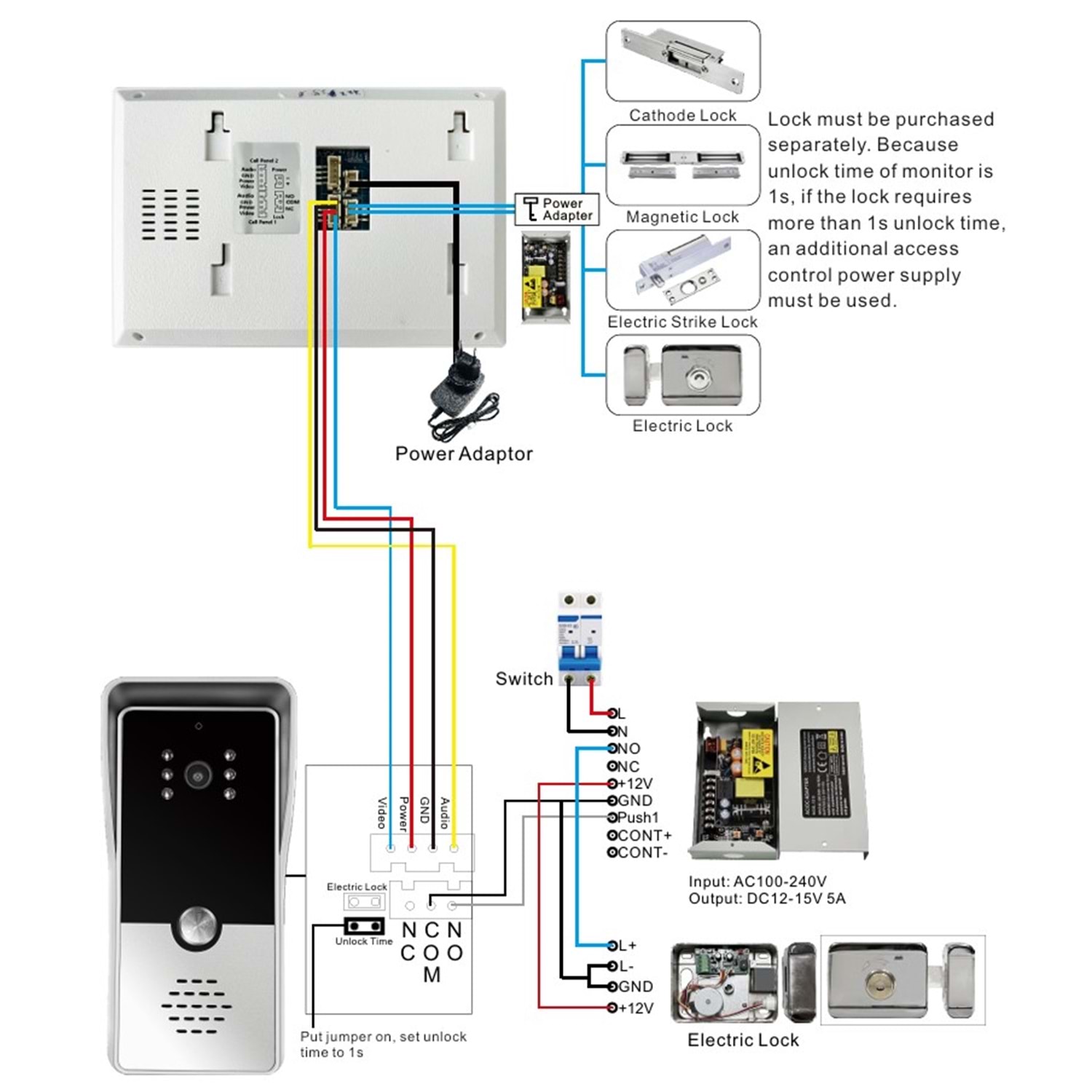

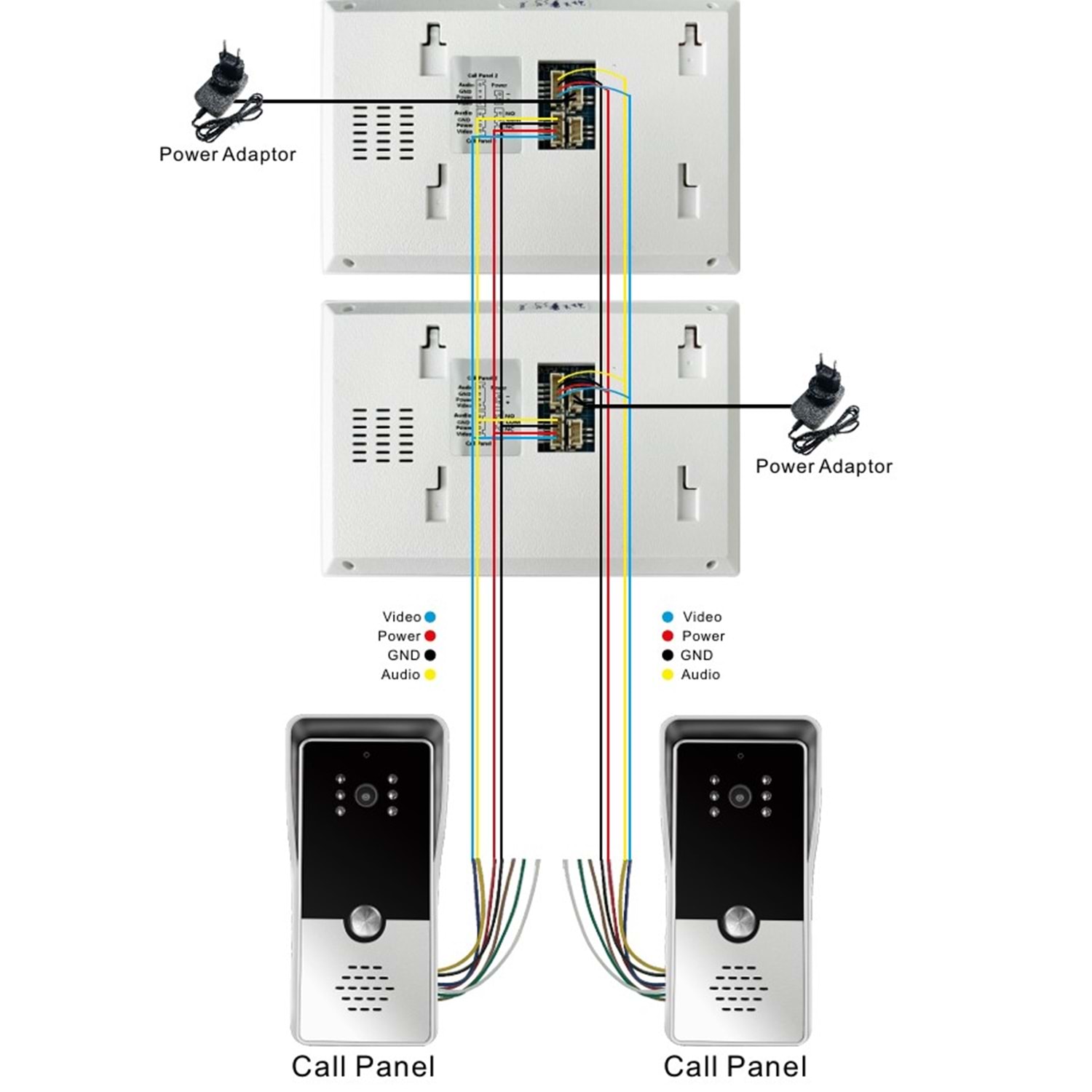

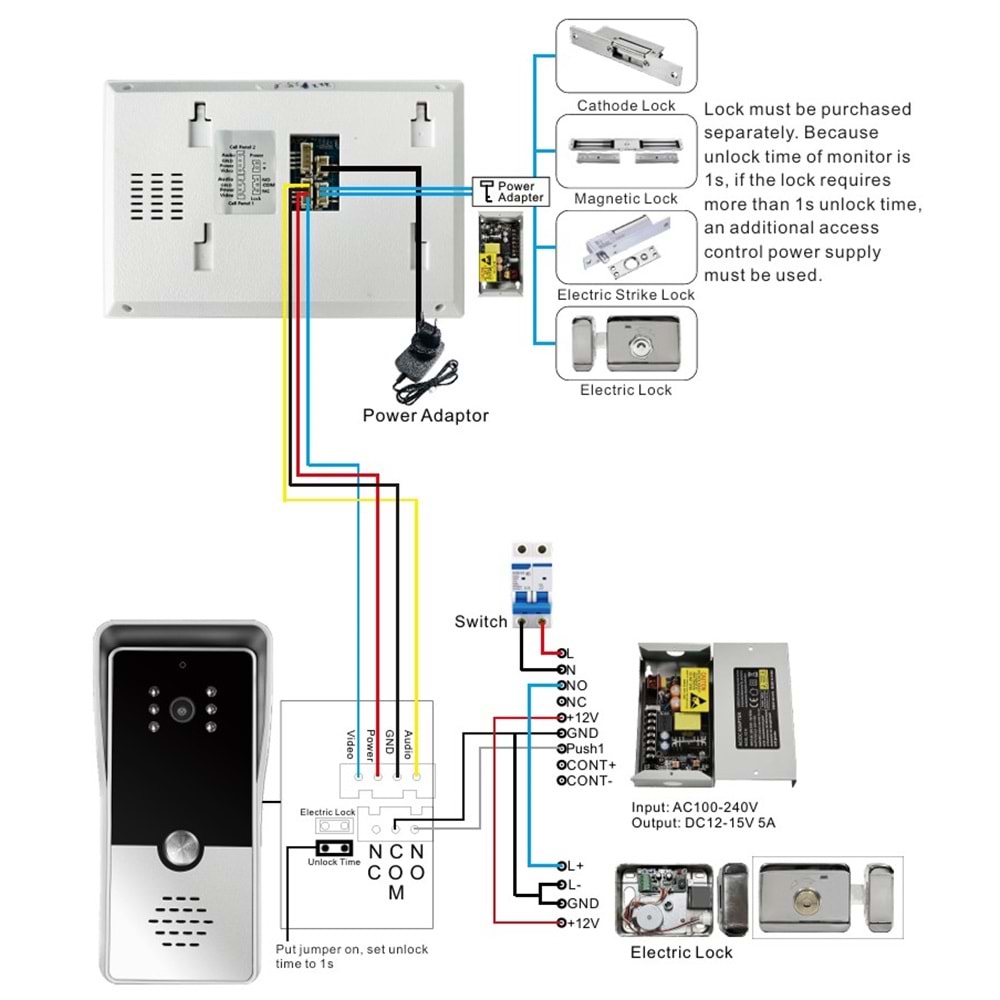

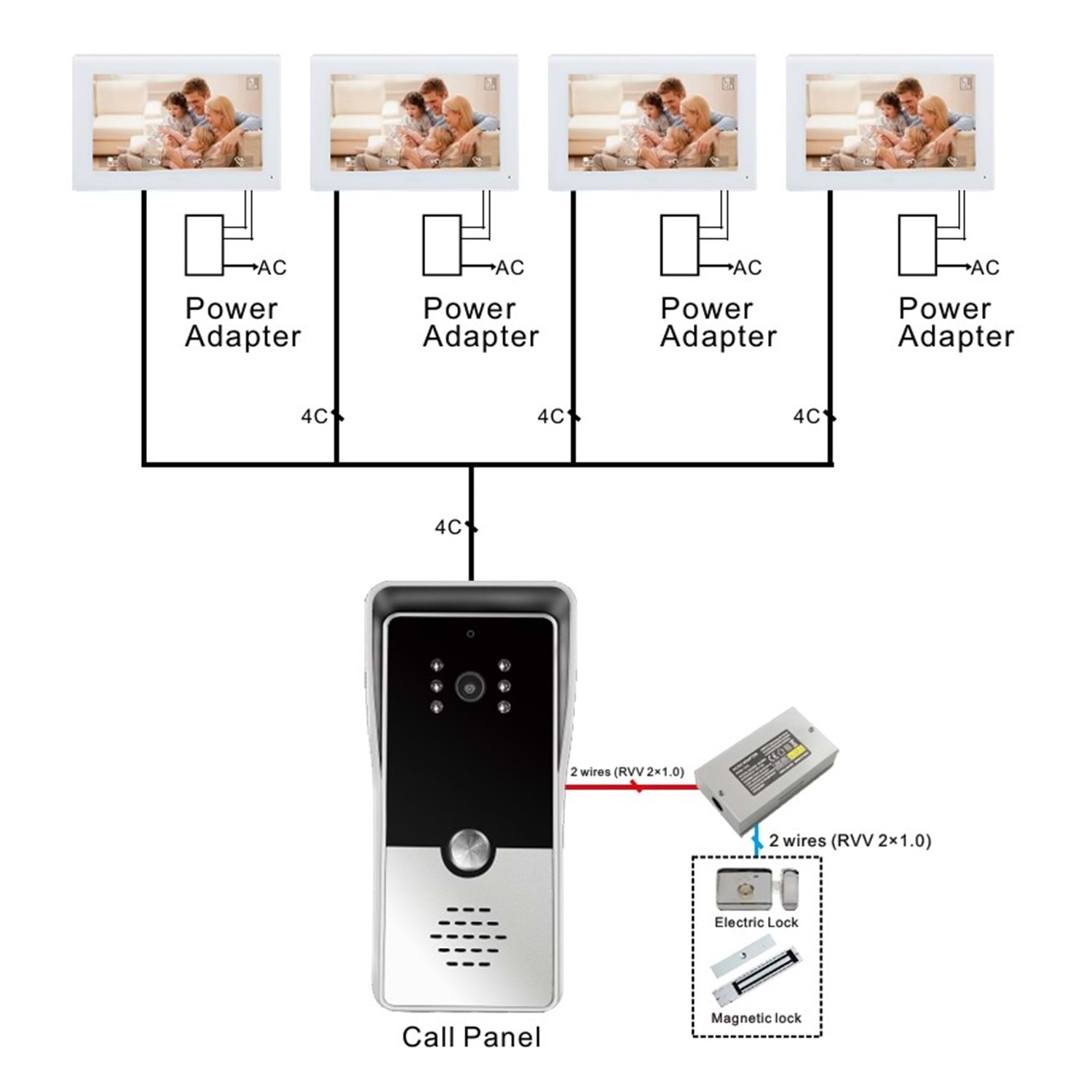

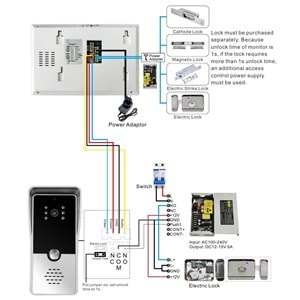

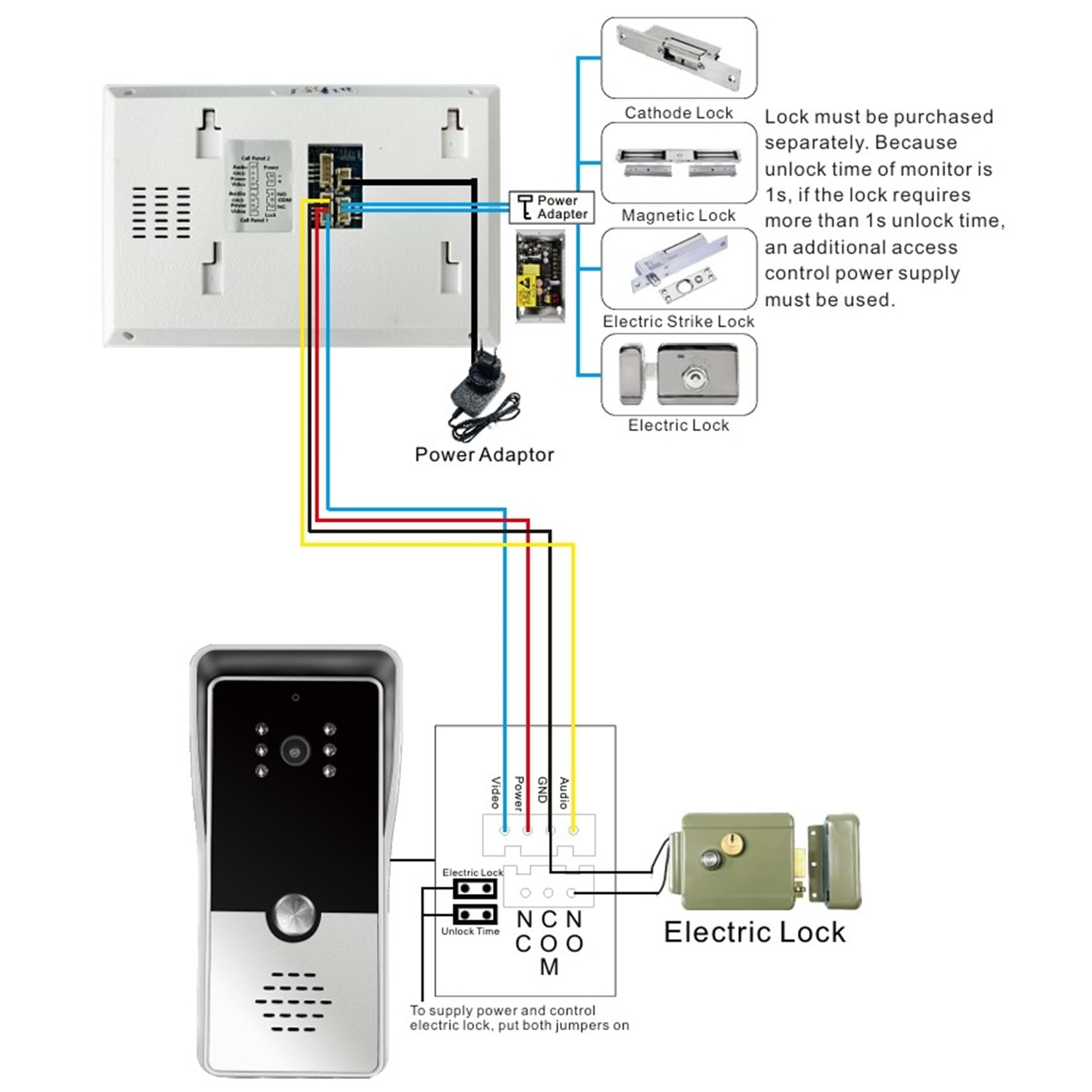

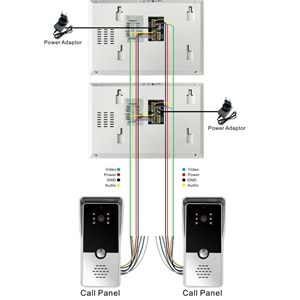

KURULUM ŞEMASI VE DETAYLARINA ÜRÜN DOSYALARI SEKMESİNDEKİ PDF DOSYASINI İNDİREREK ULAŞABİLİRSİNİZ.

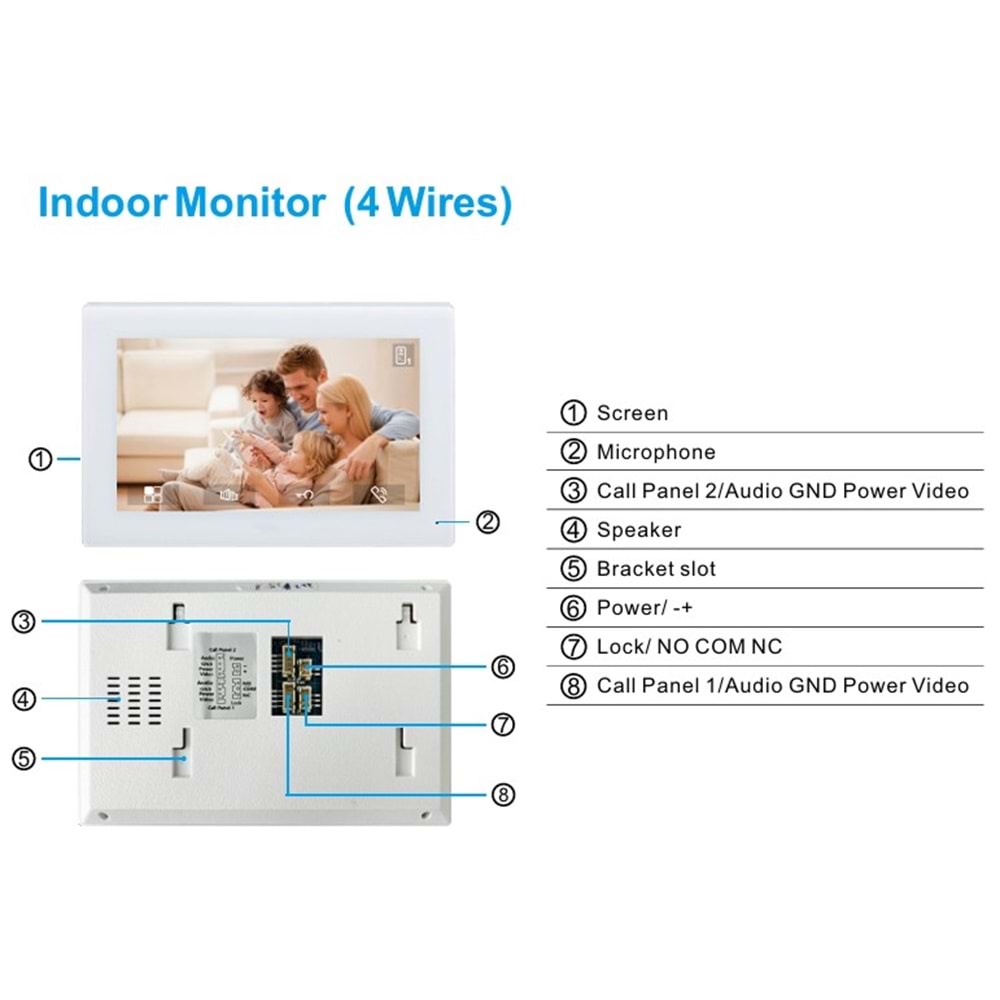

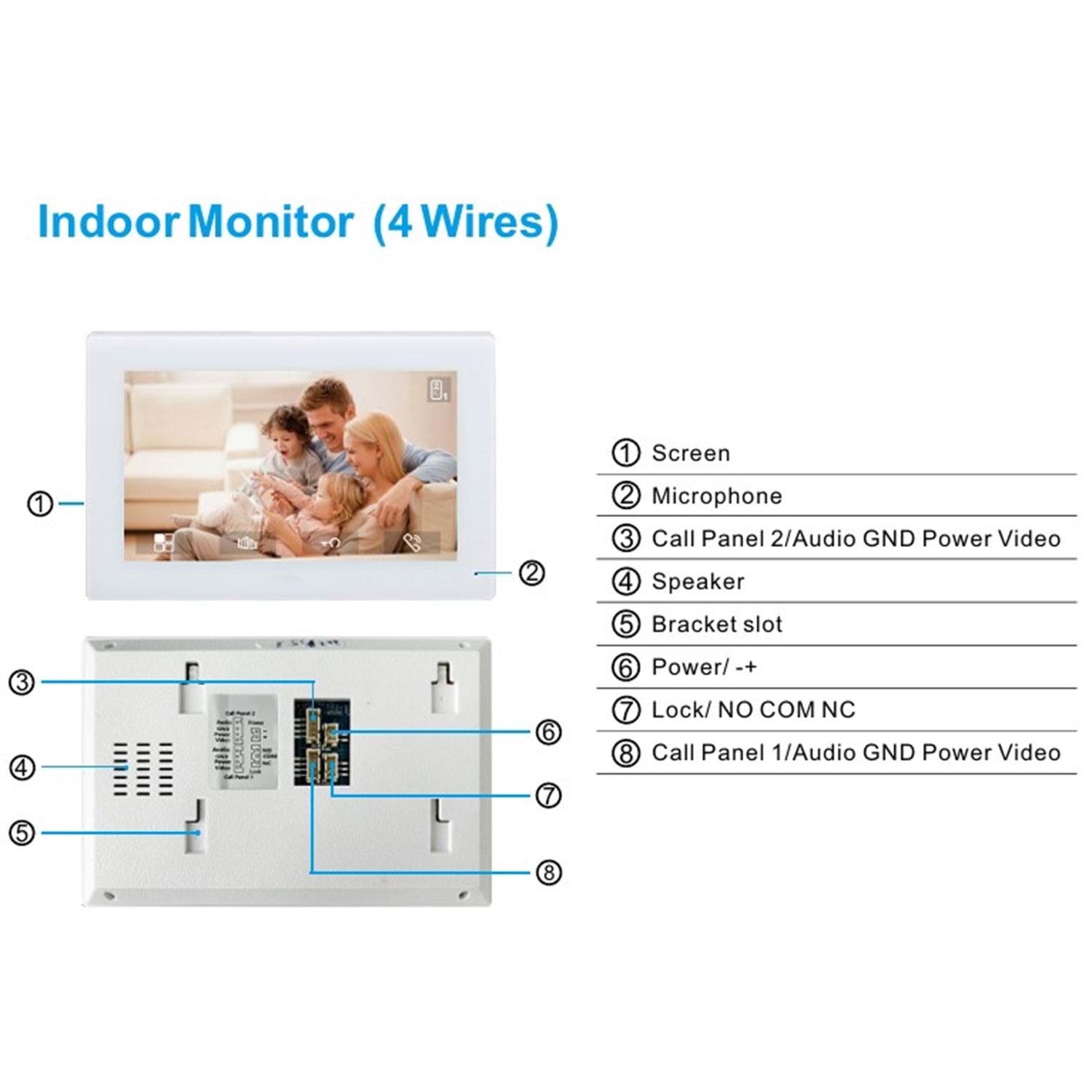

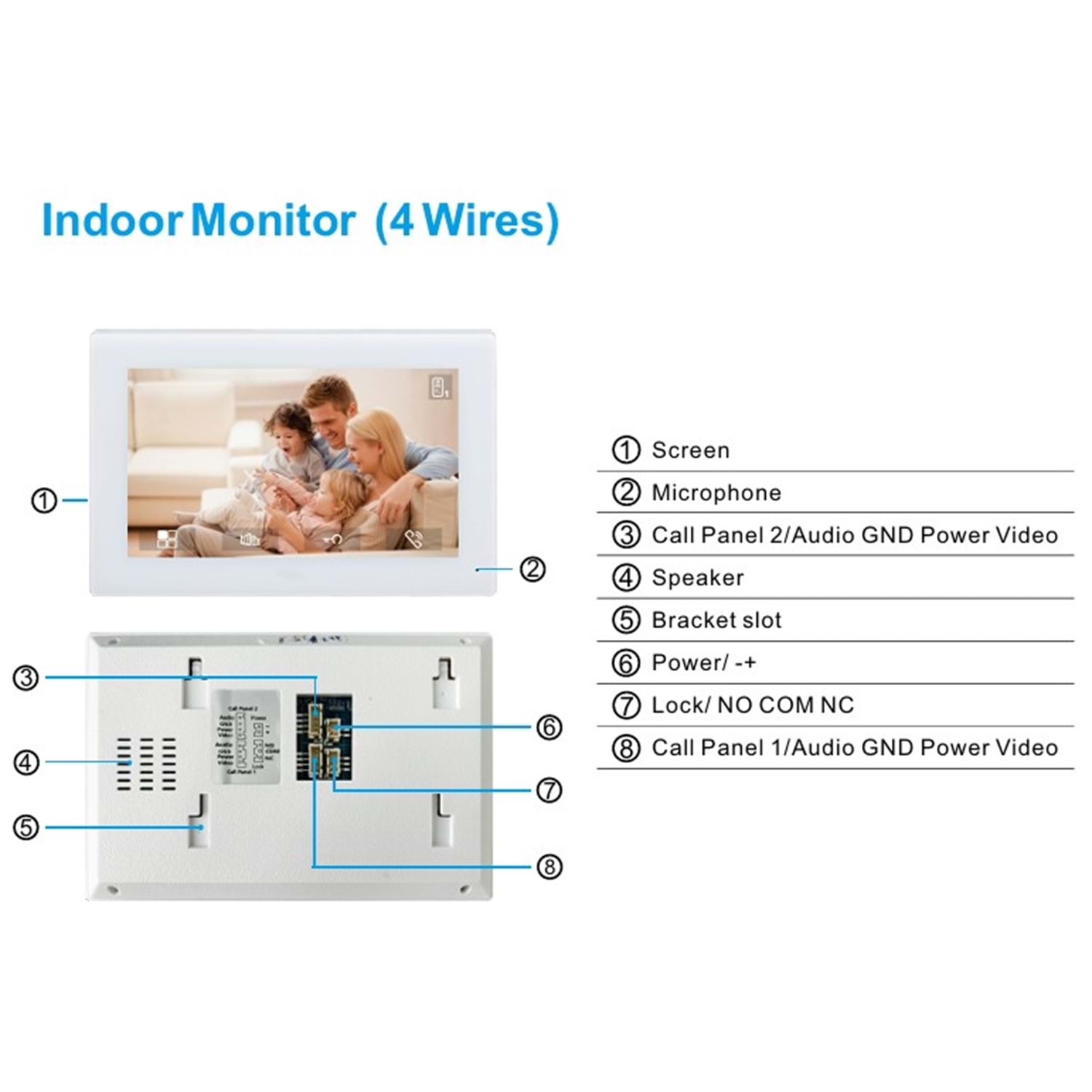

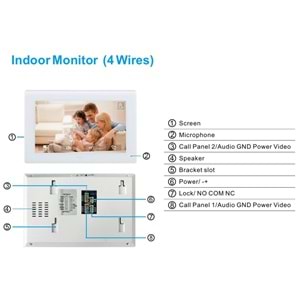

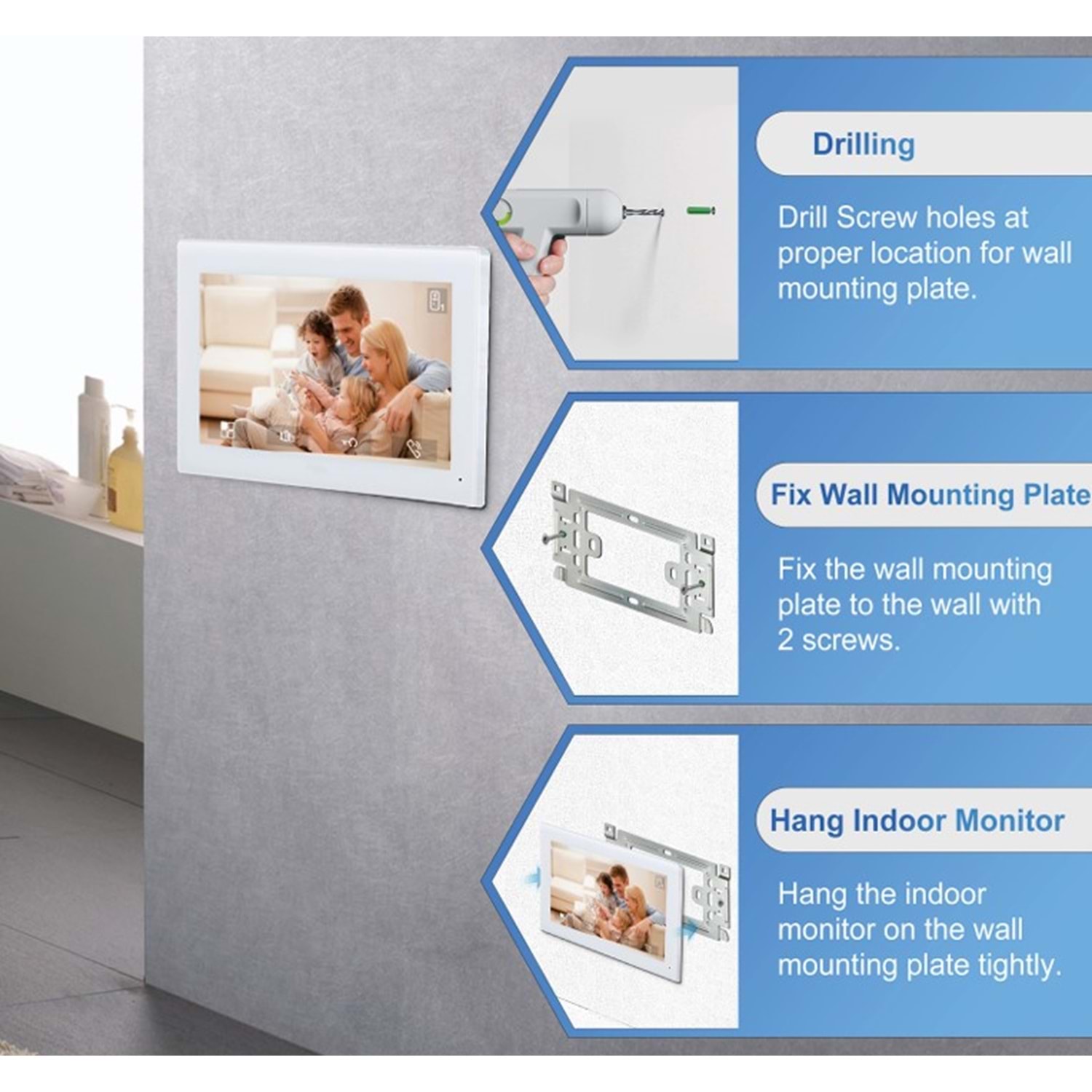

Indoor Monitor
?Display: 7 inch LCD 800*480
?Power: DC 18V 1A (Powered By Adaptor)
?Material: High Quality ABS + Acrylic Surface+
Touch Screen
?Operating Temperature:-20?~55?
?Color: White/Black
?Outline Dimensions: 190(L)x18(W)x122(H)mm

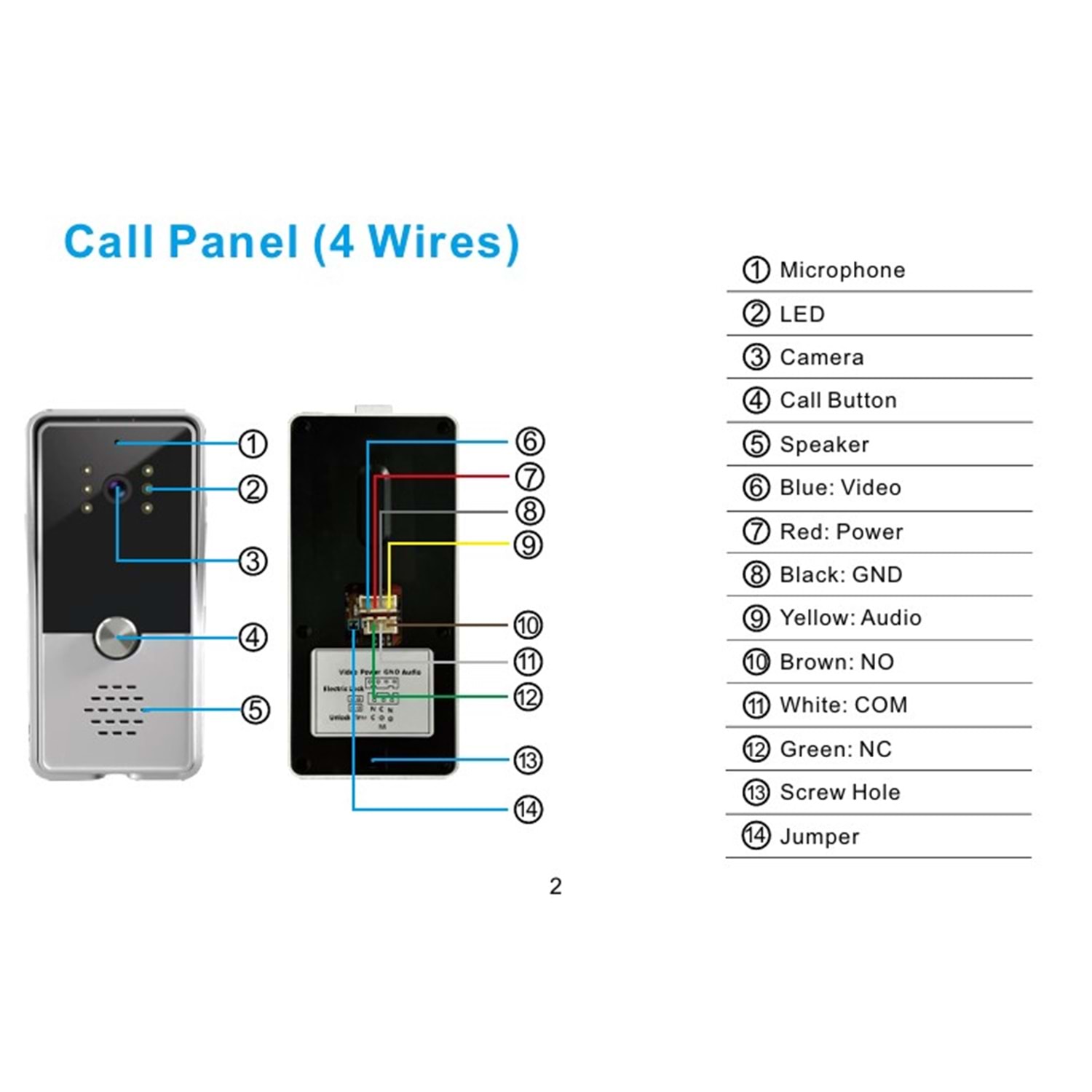

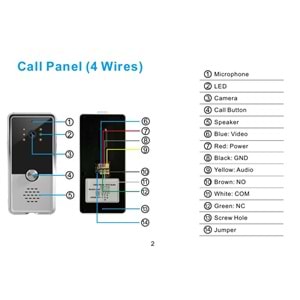

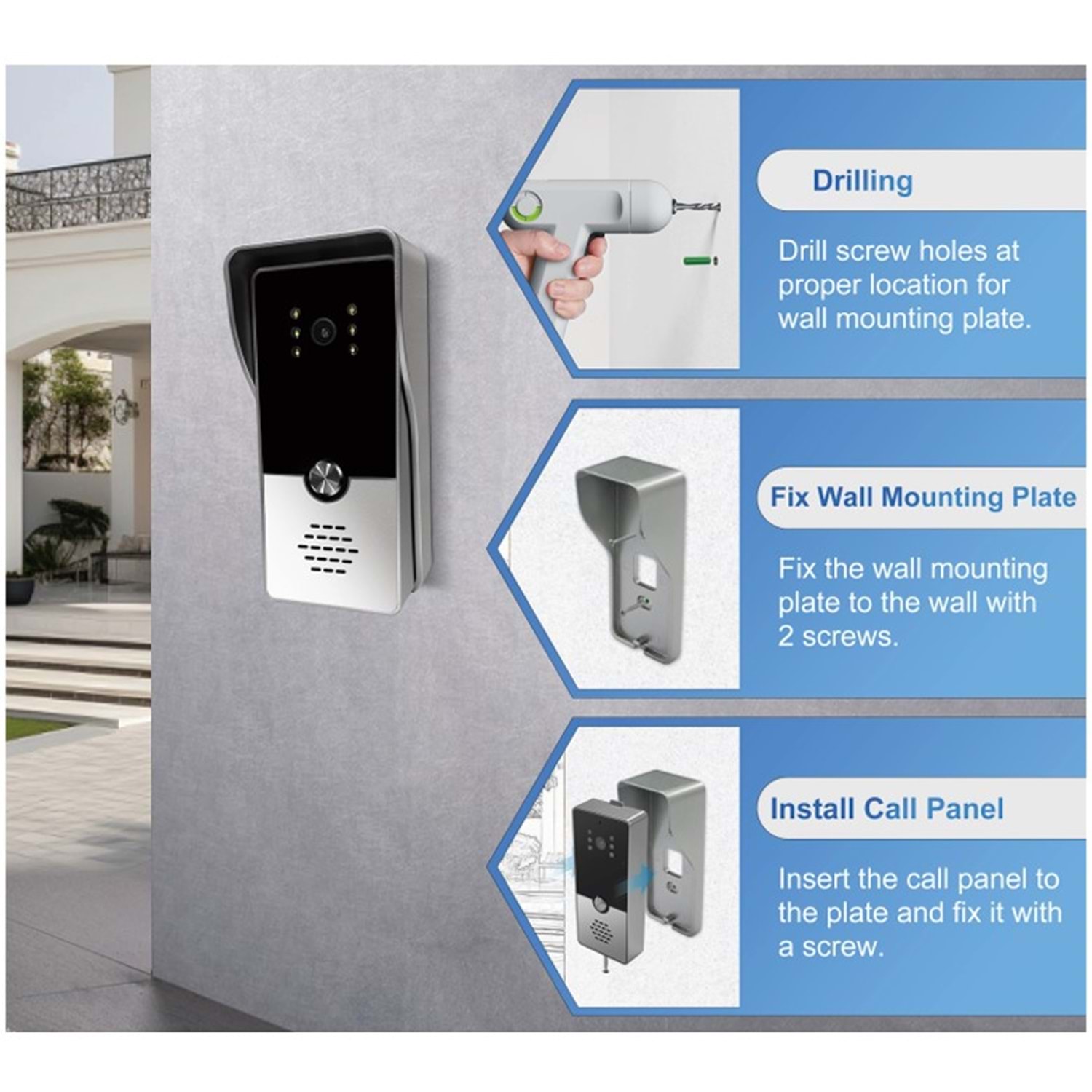

Villa Call Panel
?Camera: HD 1000TVL
?Viewing Angle: 100º
?Night Vision: White light, 6PCS White White LED
?Accessory: Rain Cover
?Waterproof: IP 65
?Power: DC18V 1A (Powered By Indoor Monitor)
?Material: High Quality ABS + Acrylic Panel
+ Press Button
?Operating Temperature:-30?~70?
?Color: Silver And Black
?Outline Dimensions: 62(L)*38(W)*132(H)mm

Operations

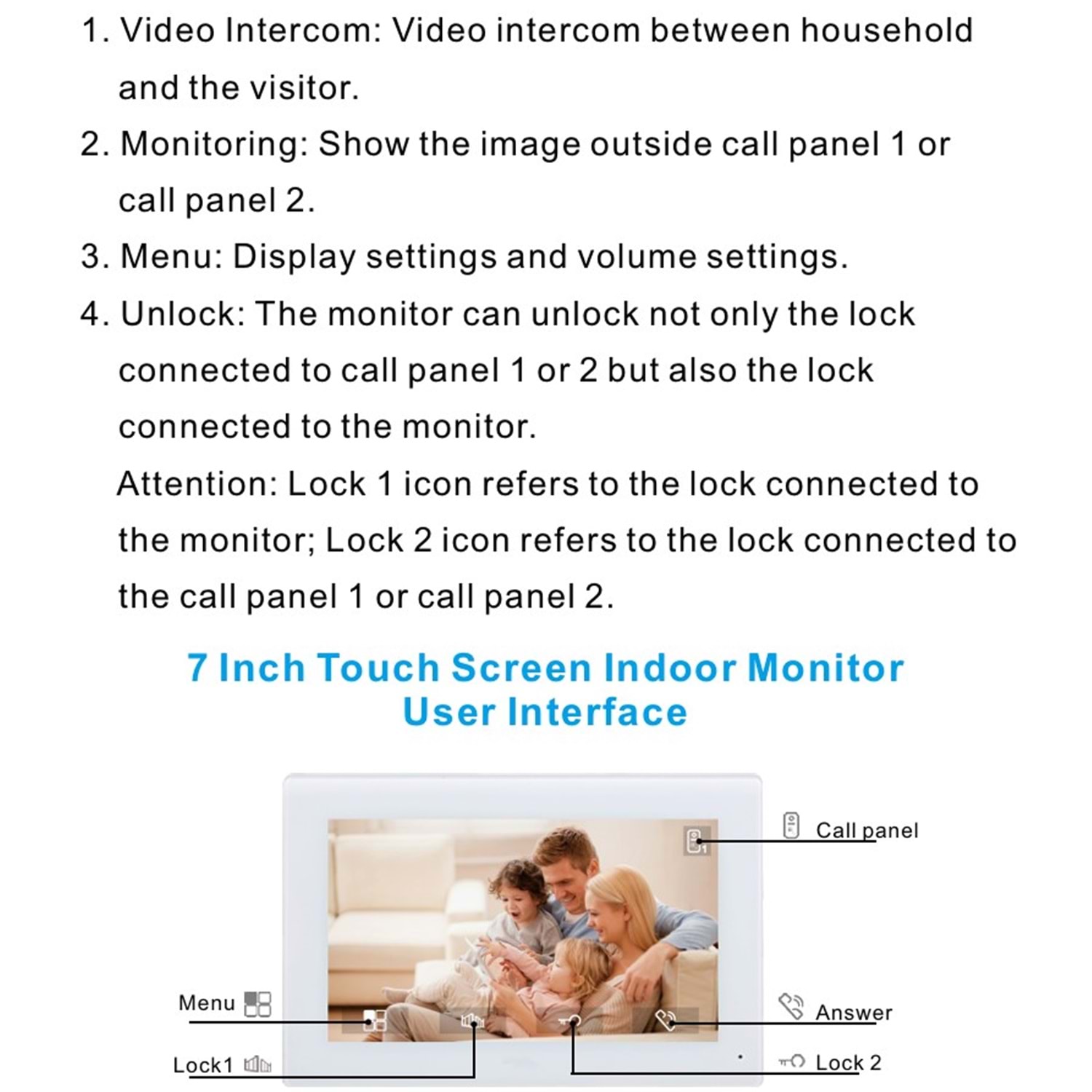

Video intercom:
To call the monitor, press the call button on the call panel 1 or press
that on the call panel 2. The monitor will ring and show the image
outside call panel 1 or call panel 2. Then, touch the according buttons
on the screen to answer the call/ to unlock the door lock/ to hang up.
Monitor:
1. When the monitor is standby, touch the screen to turn on the screen
and show the image outside call panel 1.
2. Touch the call panel icon to switch between the image outside call
panel 1 and image outside call panel 2.
3. During monitoring, touch menu button to adjust brightness, color,
contrast and volume.
4. During monitoring, touch unlock button to unlock the door lock.
5. During monitoring, touch hang up button to finish monitoring.
FAQ
NO Questions
Reason
Answers
1
Why can't call panel
call indoor monitor?
1. The wiring may be
wrong.
2. Wires are not well
c onnected.
2
3
Before installation,
it works well. Why
can’t call panel call
indoor monitor after
installation?
Why can't unlock?
1. The cable quality is bad.
2. The power supply
v oltage is insufficient.
1. Please check whether the
wring is correct.
2. Please check whether wires
a re well connected.
1.Use a good quality cable.
2.Use a power adapter with output
DC18V-24V,if the cable is over
5 0 meters.
1. The wiring may be wrong.
1. Please check whether the
wiring is correct.
2. Please check whether an
additional access control
power supply is needed.
3. For further help, please check
with our technical team
