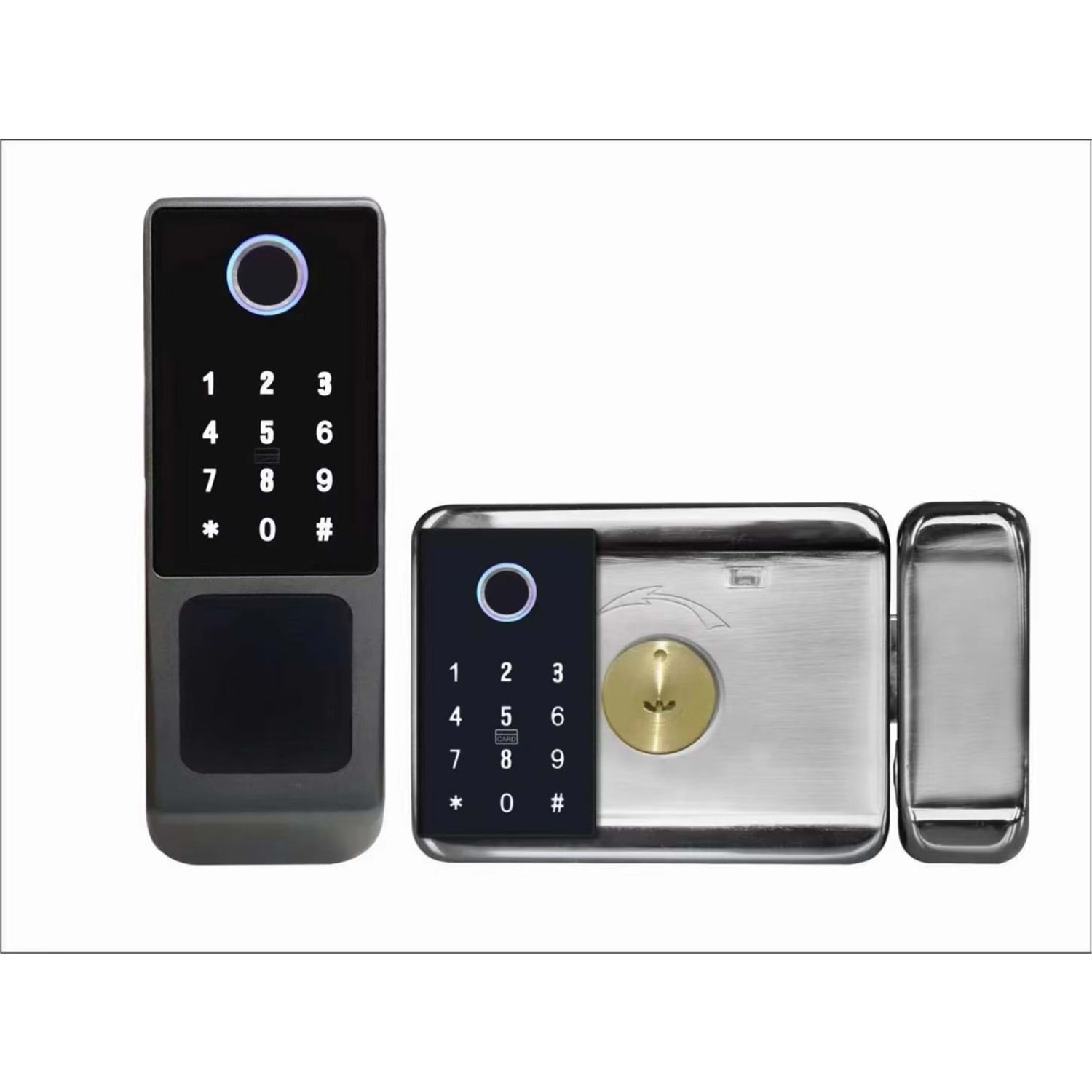

SECURİTECH TUY-SMART LİFE UYUMLU WİFİ APARTMAN TİPİ ÇİFT YÖNLÜ AKILLI TİRAJLI KİLİT SETİ

SET İÇERİĞİ :

1 x AKILLI TİRAJLI KİLİT MEKANİZMASI ( PARMAK İZİ , KART OKUYUCU , ŞİFREMATİK NFC DAHİL)

1 x DIŞ ORTAM PARMAK İZİ, KART , ŞİFRE , NFC TERMİNAL ( DIŞ ÜNİTE)

2 x FİZİKSEL ANAHTAR

2 x IC KART

MONTAJ SARF MALZEMELERİ



1) The system will automatically enter the invalid input state if the unauthorized unlocking information is continuously incorrectly input for more than 5 times within 5 minutes, and the invalid input state will lasts for 90 seconds.
2) After the voltage is lower than 4.5v, the lock will automatically alarm every time when it is opened. After the alarm, the lock can be opened for 200 times. After the number of times exceeds, each unlock delay is 5 seconds, new batteries must be replaced before the number of times available.
3) Password peeping prevention function: Input password as follows when opening the door with password: XXX password XXX; you can add some extraneous codes before and after the password, and then press # to confirm. The password must be included in the input contents.
4) If there is no operation more than 10 seconds , system will automatically exit.
5) Initialization setting: Long press the rear panel initialization button for 5 seconds to initialize, all unlock information and records will be cleared after initialization (Please be careful operation).

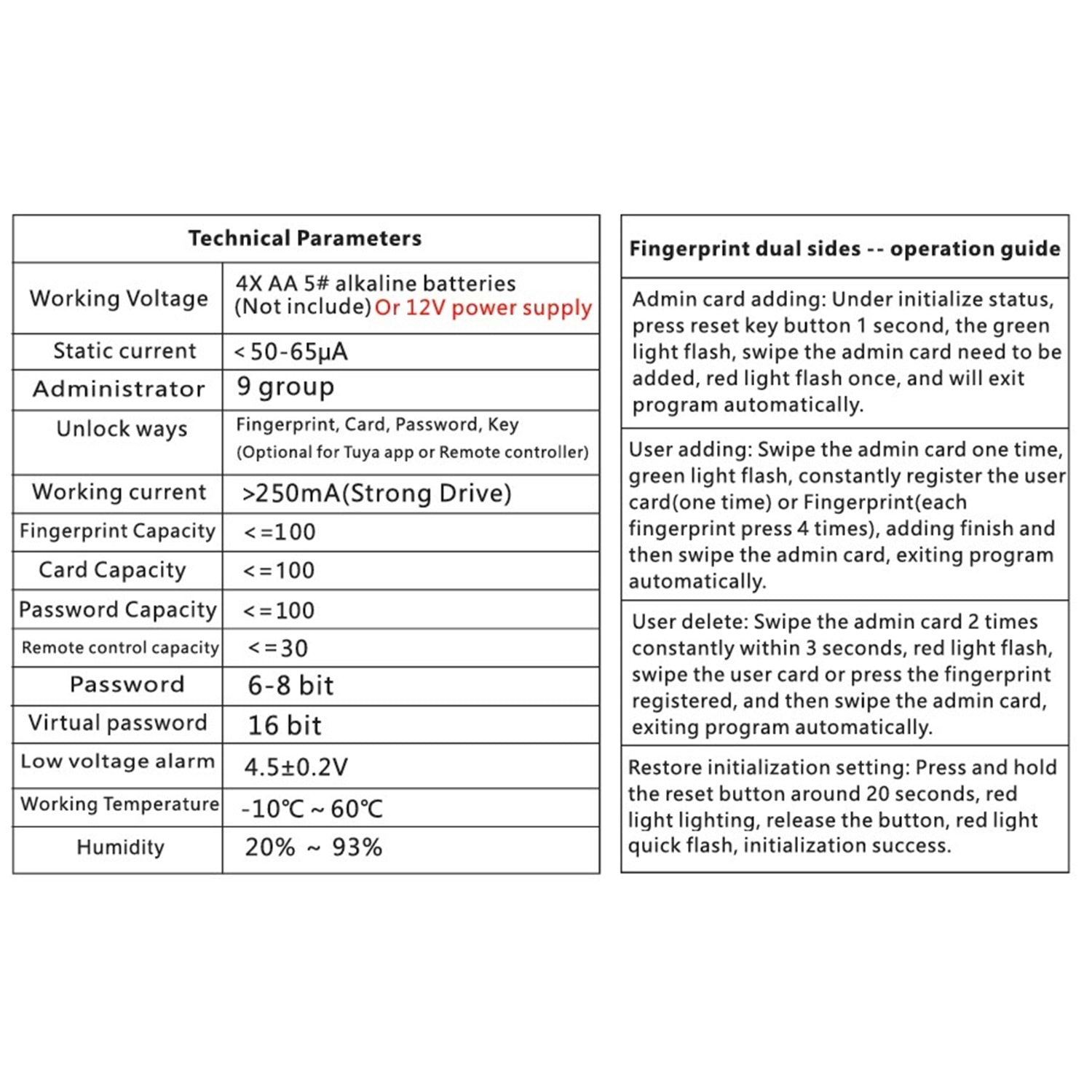

Technical Parameters Fingerprint dual sides operation guide
Working Voltage 4X AA 5# alkaline batteries
(Not include)Or 12V power supply Admin card adding: Under initialize status, press reset key button 1 second, the green light flash, swipe the admin card need to be added, red light flash once, and will exit program automatically.
Static current < 50-65wA
Administrator 9 group
Unlock ways Fingerprint, Card, Password, Key
(Optional for Tuya app or Remote controller) User adding: Swipe the admin card one time, green light flash, constantly register the user card(one time) or Fingerprint(each fingerprint press 4 times), adding finish and then swipe the admin card, exiting program automatically.
Working current >250mA(Strong Drive)
Fingerprint Capacity
Card Capacity
Password Capacity < -100 User delete: Swipe the admin card 2 times constantly within 3 seconds, red light flash, swipe the user card or press the fingerprint registered, and then swipe the admin card, exiting program automatically.
Remote control capacity < = 30
Password 6-8 bit
Virtual password 16 bit
Low voltage alarm 4.5±0.2V Restore initialization setting: Press and hold the reset button around 20 seconds, red light lighting, release the button, red light quick flash, initialization success.
Working Temperature -ICC 60 0C
Humidity 20% 93%
