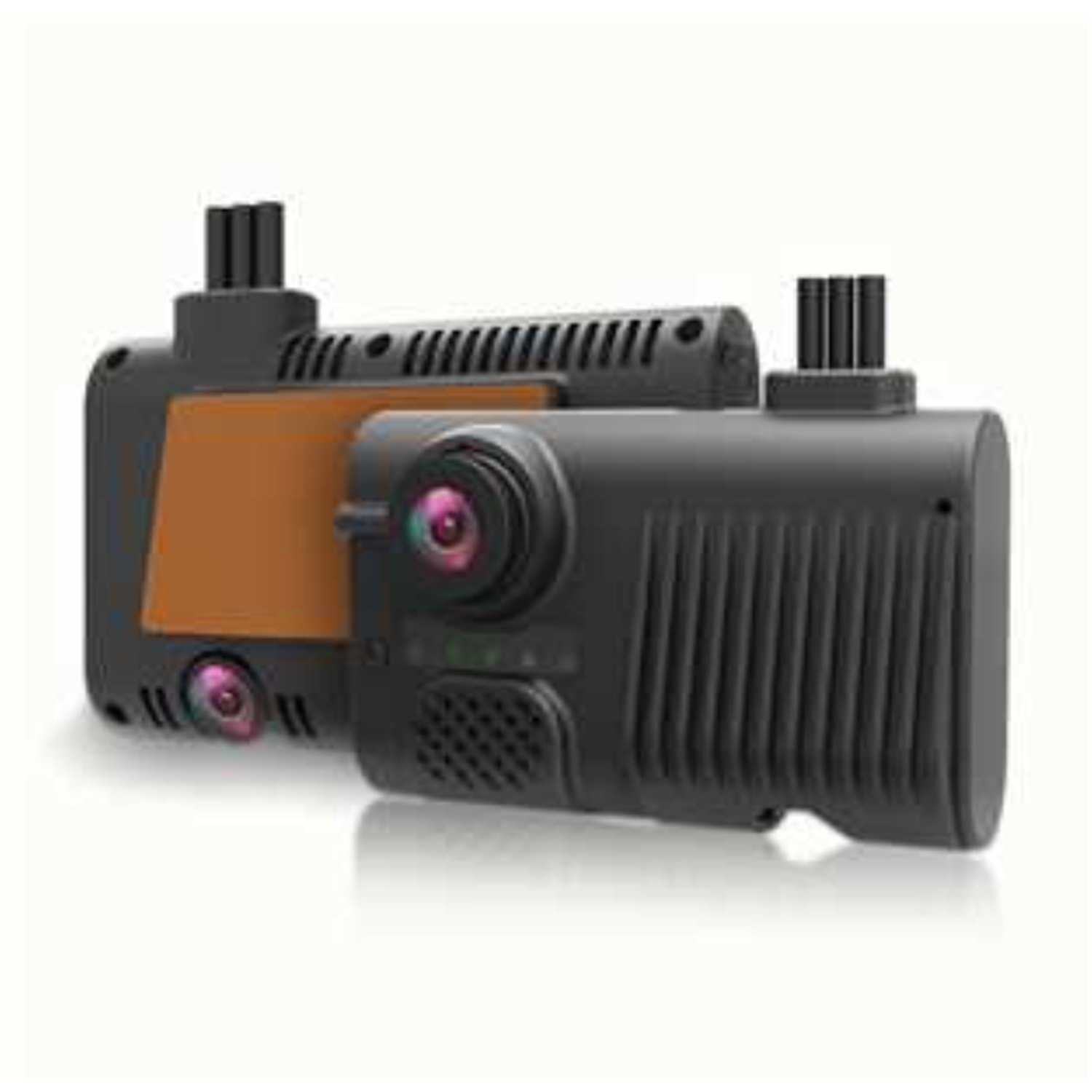

SECURITECH 2 ENTEGRE KAMERALI +2KAMERA DESTEKLİ 4G GPS ÖMÜR BOYU LİSANSLI ARAÇ KAMERASI


KUTU İÇERİĞİNDE PANİK BUTONU BULUNMAKTADIR

2. Product Features
? Adopting H.264 or H.265 encoding and decoding;
? S61 supports 1CH 1080P, 2CH 720P and 1CH AV output;
? S62 supports 1CH 1080P and 3CH 720P;
? Support 1 TF card storage and 512G capacity;
? Support 1 SOS alarm button;
? Support 1 I/O alarm output;
? Supports 3 I/O alarm inputs;
? Support functions such as 4G and GPS (external Gmouse, TTL);
? Support mobile apps, and platform software to preview videos and configure parameters;
? Built in speaker and microphone, supporting bidirectional voice intercom between device and platform;
? Support AI intelligent algorithm, supporting ADAS, DMS, BSD and driver facial recognition detection;
? Built-in WiFi for viewing videos and configuring parameters;
? Supports 2 x RS232, 1 x 5V and 1 x 12V outputs.


Item Parameters
System Language Chinese/English
Operating system Linux
Interface Web or mobile app
Processor CPU ARM Dual-Core processor@1.2GHz
Memory DDR 2Gb
Flash 2Gb
Video/Record Video input Front(built-in) 1080p, horizontal viewing angle 105°
Rear(built-in) 720p, with a horizontal viewing angle of 122°. Expandable 1 or 2 channels 720p
Video output S61 supports 1CH AV output
Video format H.264/H.265
Resolution 1080P, 720P, D1 optional
Quality Available in levels 1-4
Record Mode Record on startup
Audio Audio input Built-in MIC
Audion output Built-in amplifier, built-in 2W speaker
Audion format G.711A
4G Built in 4G, TDD-LTE, FDD-LTE
WiFi Built-in WiFi for viewing videos and configuring parameters
GPS Gmouse GPS
G Sensor Built-in 3-axis acceleration sensor
SOS Support
I/O input Supports 3 I/O alarm input
I/O output Support 1 I/O alarm output
Serial port Supports 2 RS232. Can be connected to oil level sensors, RFID card readers, etc
Upgrade Firmware Support TF card and FTP firmware upgrade
Port TF Card Maximum support for 512G TF card
Update Support TF card upgrade and FTP remote automatic upgrade
USB Supports type-c interface
SIM Card 1 SIM card Port
AI algorithm
(3 options 2) ADAS FCW, LDW, HMW, PCW
DSM Smoking, making phone calls, yawning, dozing, distracted, driver not detected, blocking cameras, sunglasses identification, seat belts
BSD Blind spot detection. Support left and right blind spot detection
Face recognition FR
Power Management Adaptive broadband power input with protection functions such as overload, undervoltage, short circuit, and reverse connection.
Input voltage DC:+9V ~ +36V
Consumption Normal work < 5W (without peripherals)
Environment Temperature -20? to +70?
Humidity 20% to 80%
Network/Platform JT/T808-2013, JT/T808-2019, JT/T1076-2016, JT/T1078-2016
UVMS, CMSV6
Size 125mm*85mm*45mm


Environment Temperature -20? to +70?
Humidity 20% to 80%
Network/Platform JT/T808-2013, JT/T808-2019, JT/T1076-2016, JT/T1078-2016
UVMS, CMSV6
Size 125mm*85mm*45mm


S6 Difference Comparison
Model VI VO WiFi AI SOS I/O input I/O output RS232 5V 12V
S61 3 ? ? ? ? 3 ? 2 ? ?
S62 4 × ? ? ? 3 ? 2 ? ?
