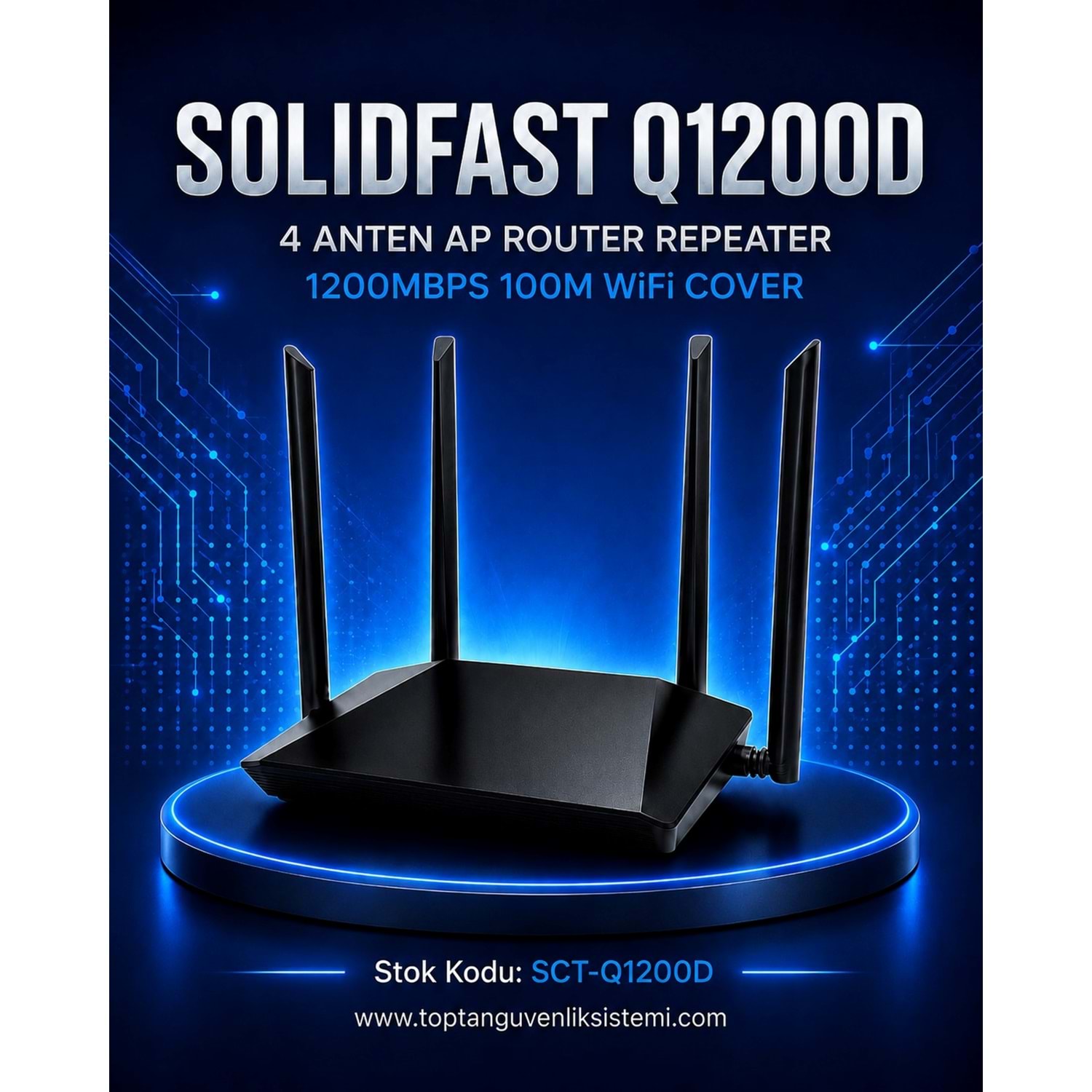

SOLIDFAST 4 ANTEN 1200MBPS DUAL BAND 2.4&5GHZ AP ROUTER REPEATER


Q1200D is a Wifi router WAN port (auto-switch). It adopts MediaTek chipset, comply with IEEE 802.11b/g/n/ac standard, the Wi-Fi data rate is up to 1200Mbps.


Main Features:
? Comply with IEEE 802.11b/g/n/ac Standard, the Wi-Fi data rate is up to 1200Mbps.
? Supports VPN (L2TP, PPTP, auto VPN), meet with industrial applications such as chain stores, intelligent data collection, intelligent building, vending machine etc.
? 2* 10/100Mbps LAN,1* 10/100Mbps WAN
? 4* 5dBi high-gain antennas to provide wide Wi-Fi Coverage.
? Support up to 32 users/devices simultaneously


Hardware Specification
Product Size 240x145x30mm
CPU 580MHz
Memories FLASH 8M, DDR 64M
Protocols Comply IEEE802.11b/g/n/ac, IEEE802.3u, IEEE 802.3x
Wi-Fi 2.4GHz:300Mbps, 2.412 GHz ~ 2.484GHz (Channel 1~13)
5.8GHz: 866Mbps, 5.180 GHz ~ 5.850 GHz (Channel 36~165)
Ethernet Ports 2x 10/100M LAN
1x 10/100M WAN
Power Supply DC 12V/1A

Reset Button 1x Reset button, Restore factory default settings
Antenna Wi-Fi 5dBi x 4PCS, 5dBi x 2PCS
LED Indicator PWR, WAN, LAN1, LAN2, WiFi,
Working Temperature -25°C~+60°C
Storage Temperature -40°C~+80°C
Working Humidity 10%~95% RH(non-condensation)
Storage Humidity 10%~95% RH(non-condensation)
