Gigabit Ethernet Fiber Switch

Product Description

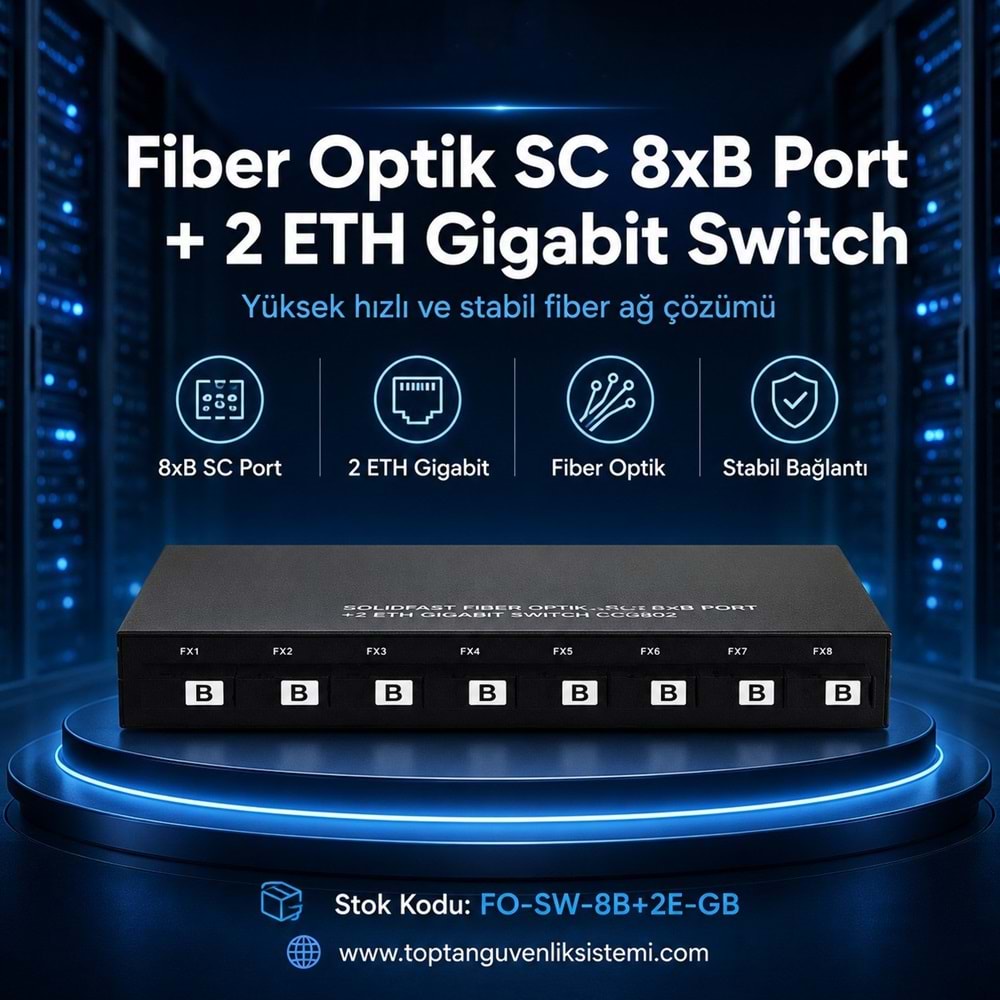

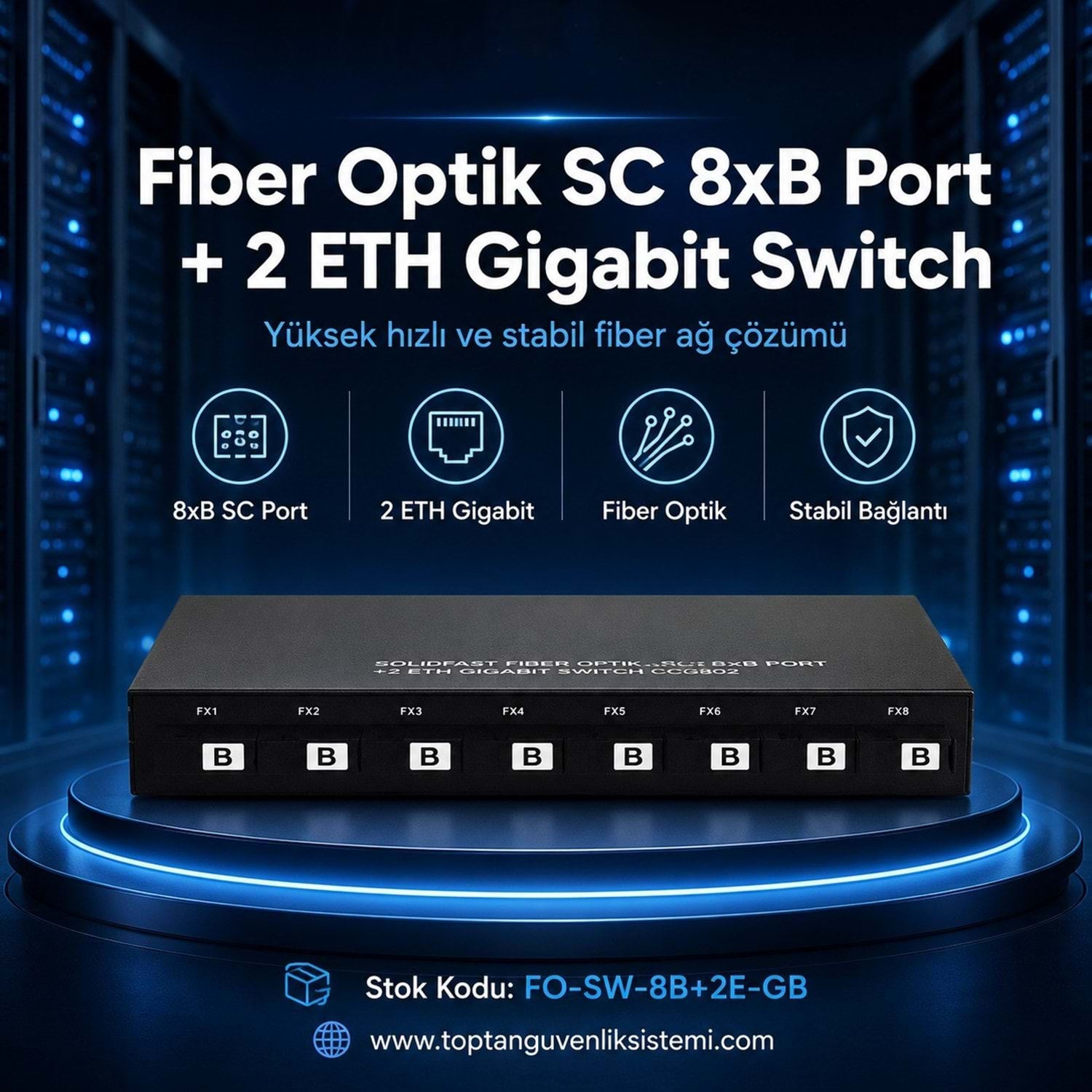

The Ethernet Fiber Switch has 8 1.25Gbps SC optical ports and 2 10/100/1000Mbps network ports, which can realize data communication between 1000Base-T twisted pair and 1000Base-SX/LX optical cable, and can extend the limit transmission distance of the network from 100 meters of twisted pair to 120 kilometers of optical fiber.
The installation of this fiber optic switch is simple and convenient, as it is plug-and-play without requiring any configuration. All optical and electrical interfaces comply with international standards. The product offers isolation protection, ensures good data confidentiality, operates stably, and is easy to maintain. It is suitable for various commercial and industrial environments.

? 2 10/100/1000Base-TX Ethernet ports and 8 1000Base-X fiber optic ports.
? Supports transmission of large data packets up to 10K.
? All ports support 10/100/1000Mbps rate adaptation.
? All ports support half/full duplex auto-negotiation and automatic MDI/MDI-X functionality.
? All ports support line-speed forwarding for smoother transmission.
? Plug-and-play operation, simple to use without any configuration required.
? Equipped with a metal casing for excellent heat dissipation, ensuring stable operation over long periods of time.


Protocol Standard IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.3x flow control
Fiber Port Characteristic Connector Type SC
Transmission rate 1.25Gbps
Transmission distance Multi-mode: 550m/2km;
Single-mode: 2/20/40/60/80/100km
Wavelength Multi-mode:850nm/1310nm,
Single-mode:1310nm/1550nm/1490nm
Ethernet port
Characteristic Connector Type 1×1 RJ45
Transmission rate 10/100/1000Mbps auto-negotiate;
Transmission distance 10Base-T: ?250m(CAT3,4,5 UTP)
100Base-TX: ?100m(CAT3,4,5 UTP)
1000Base-T: ?100m(CAT3,4,5 UTP)
Exchange performance Forward method Store-and-forward(full wire-speed)
Transmission mode Half/Full duplex adaptive
MAC address table 1K
Case space 1Mb
Jumbo frame 9K
Packet Forwarding Rate 14.88Mpps@64byte
Bandwidth 20G(non-blocking)
LED indicator Power supply indicator PWR: Green
Fiber indicator SC1/SC2/SC3/SC4/SC5/SC6/SC7/SC8, Green
Link/Act indicator TP1/TP2, Green
Power parameters Input voltage DC5~12V
Power consumption ?6W
Environment Operating Temperature -20?~60?
Storage Temperature: -40?~85?
Operating Humidity 5%~95% non-condensing
Heat dissipation method Natural heat dissipation
Physical properties Size 215×94×27mm
Weight 0.5kg
