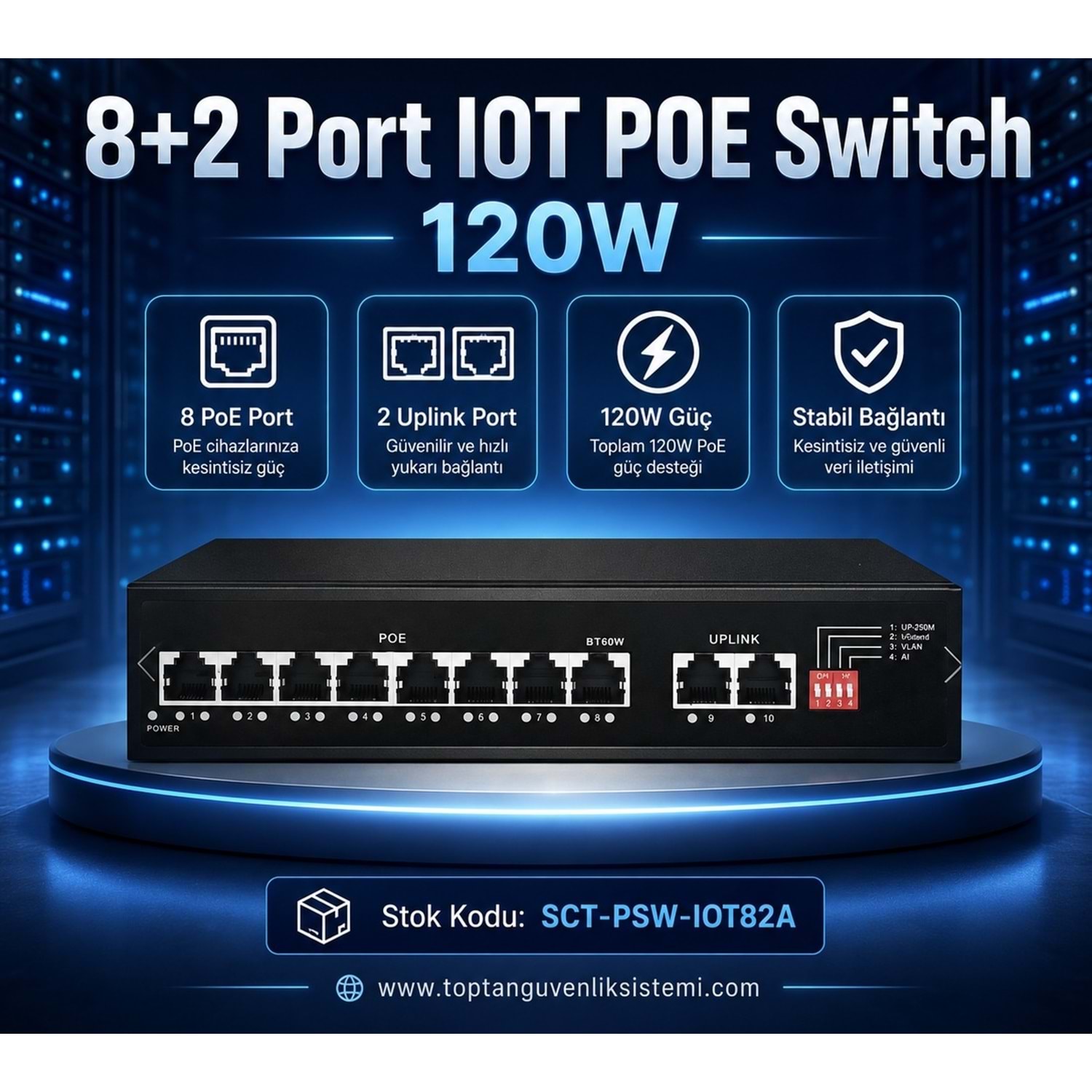

SOLIDFAST 8+2 PORT 120W IOT POE SWITCH

* LPP/BPS : LOOP KORUMASI
* AI : WATCHDOG ÖZELLİĞİ : Tüm PoE portlarının veri iletişim durumunu gerçek zamanlı olarak otomatik olarak algılar ve kamera durdurulursa PoE IP kamerasını zamanında yeniden başlatır


4 DIP switches:

1. LPP/BPS: Loop protection and Broadcast storm protection
2. Extend: the Max extend distance is 250 meters at 10Mbps for 1-8 ports
3. Vlan: 1-8 ports isolation
4. AI: Watchdog function:auto-detect the data communication status of all PoE ports in real-time, and restart PoE IP camera timely if the camera is halted


Technical Specification

Product Name 8 Ports IOT-POE Switch(8+2)
Product Model SCT-IOT82A
Data Pin 1/2+,3/6-
Power Supply Type Build in, 1/2+,3/6
Max PoE Output 1-7th ports:30W
Max PoE Output 8th port:60W
Connector 8*10/100Mbps POE port,2*10/100Mbps uplink port
Network Medium Cat5 (UTP) or more
Technology
Network Standards IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet
PoE power 30W 1-7th ports(IEEE802.3af/at)
60W 8th port(IEEE802.3af/at/bt)
Wiring: Data & power provided over pairs 1/2 and 3/6
Processing types Store-and-forward
Half-duplex back pressure and IEEE 802.3x full-duplex flow control
Address database Table Size 1K MAC address
Backboard Bandwidth 2Gbps
Network Latency Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission
Power
Input AC 110-240V, 50/60 Hz
Overload current protection Present
Mechanical
Casing Metal
Installation Desktop
Interface
LED Indicators System: Power
Per port: Link, PoE active
Environment specification
Operating temperature -10-55?
Storage temperature -40-70?
Operating humidity 90% maximum relative humidity, non-condensing
Storage humidity 95% maximum relative humidity, non-condensing
Regulatory Approval
Certificate CE/CCC
Warranty 2 years
Dimensions 202*140*45mm(L*W*H)
Weight 1Kg
