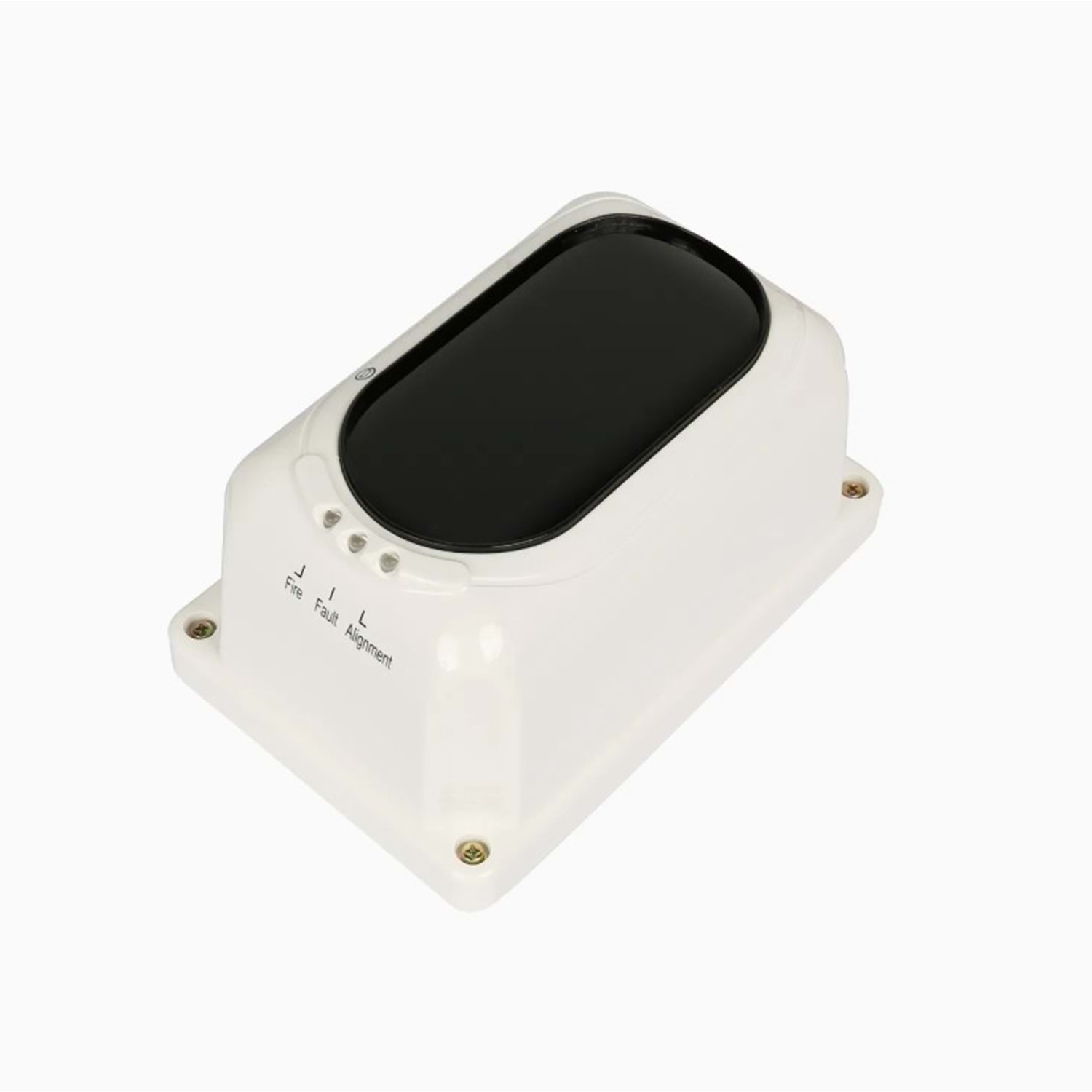

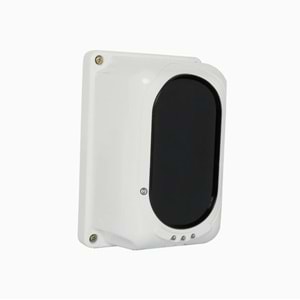

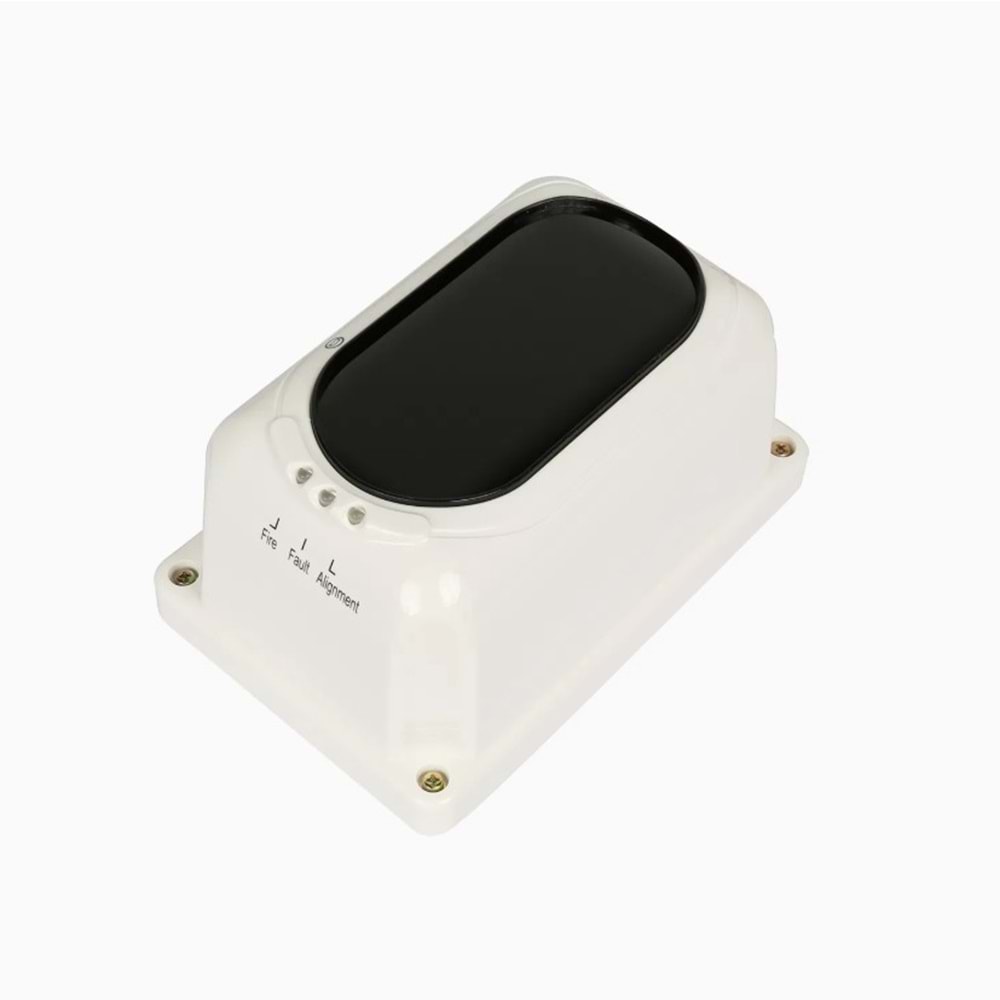

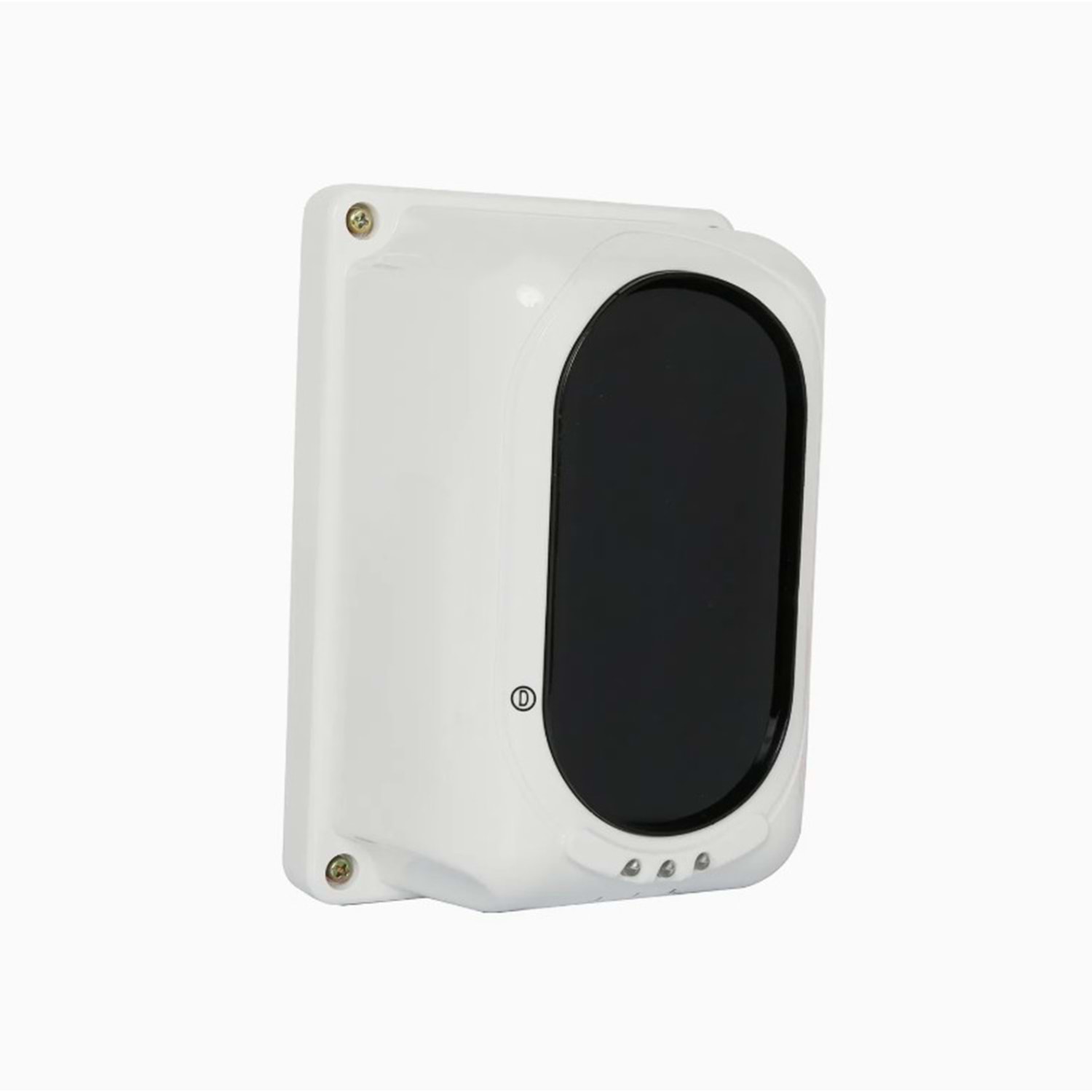

7130 KONVANSIYONEL BEAM DUMAN YANGIN DEDEKTÖRÜ

Conventional Reflective Beam Detector

Operating Voltage: DC 20~28 V
Current Parameters : Standby:23mA,Commission: 56mA, Alarm:33mA
Beam Sensor Sensitivity [via Encoder] :
Level 1: 2.6 dB High Sensitivity
Level 2: 3.8 dB Medium Sensitivity
Level 3: 5.8 dB Low Sensitivity
Beam Pathway Length [via Encoder] :
Span 1: 8 to 20 meters Short Path (1x mirror reflector required)
Span 2: 20 to 40 meters Short Path (1x mirror reflector required)

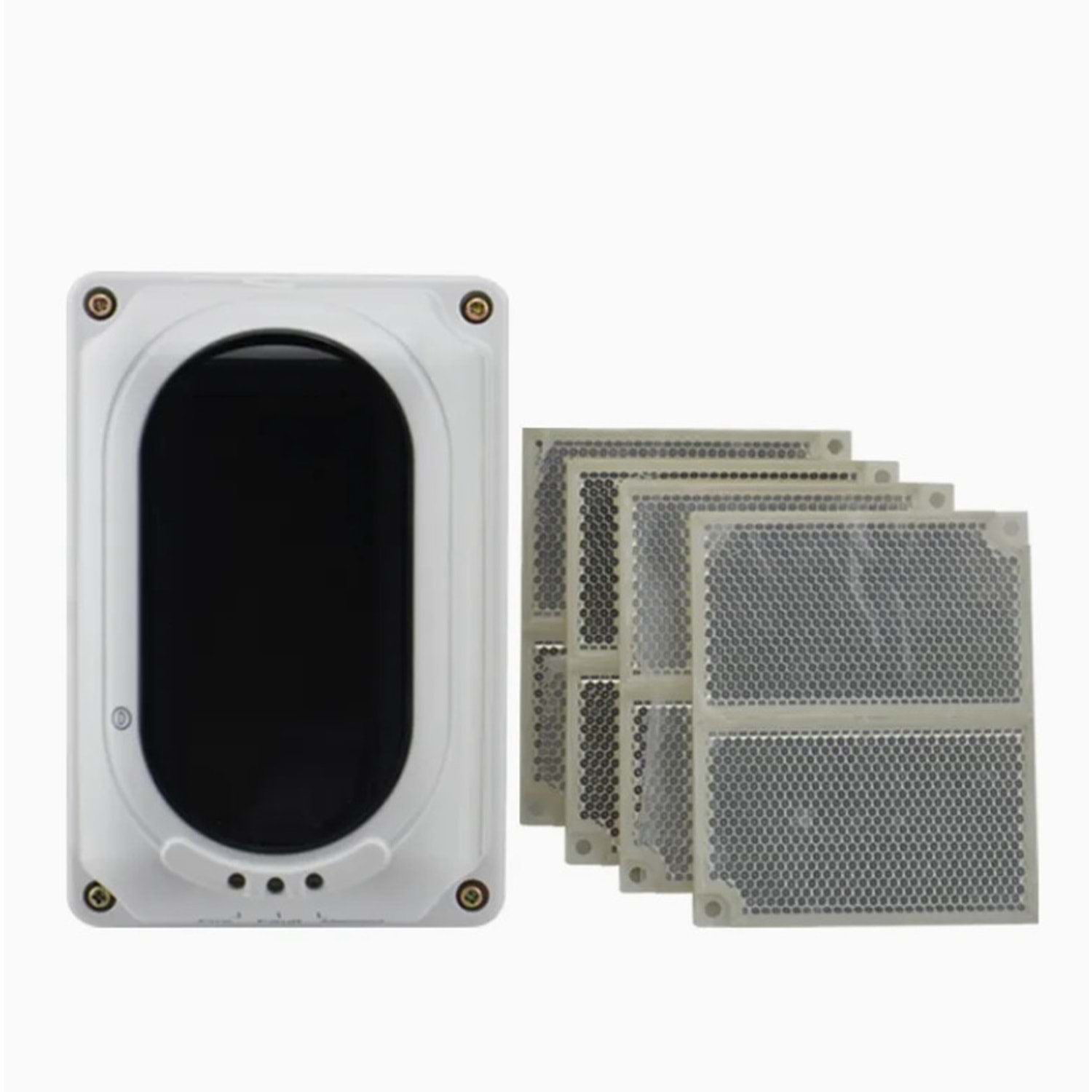

Span 3: 40 to 70 meters Normal Path (4x mirror reflector required)
Span 4: 70 to 100 meters Long Path (4x mirror reflector required)
Beam Path Angle : ±0.5º Directional
Alignment Guide : Laser Beam Pointer
Digital Display Guide : Nixie Tube
LED Indicator Guide: Red: Fire; Yellow: Fault; Green: Alignment
Reset Time : Less than 2 Second (Power Cut)
Relay Capacity [Fire & Fault] : Normally Open/ 2.0 A; 30 VDC
