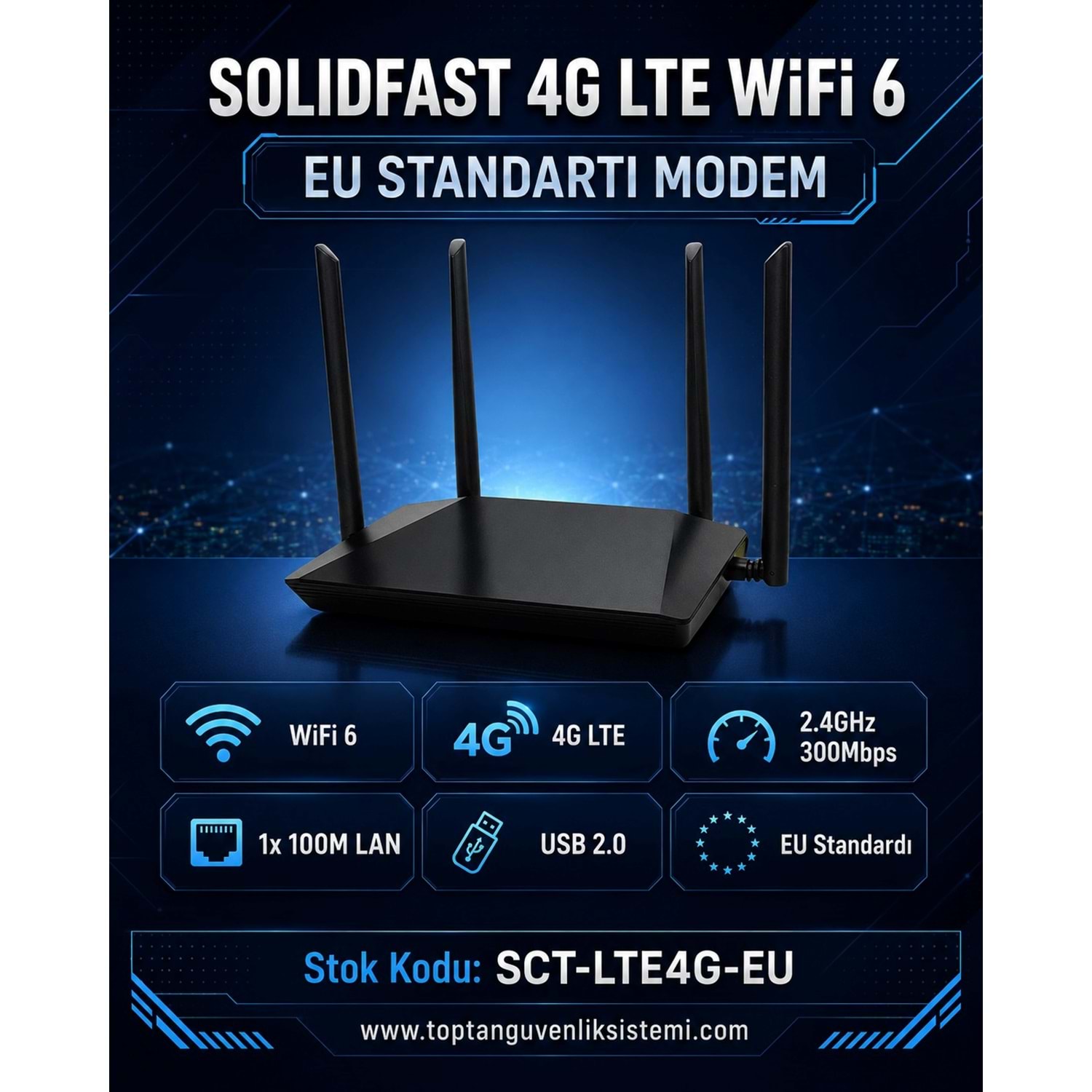

SOLIDFAST SINGLE BAND WİFİ 6 4G LTE MODEM

?2.4GHz:300Mbps, 2.412 GHz ~ 2.472 GHz

?2.4GHz: 100mW

?LTE CAT4 MIMO 2*2

?DC 12V 1A, 1*100M LAN

?-80°C~+90°C

Main Features:
? Comply with IEEE 802.11b/g/n Standard, the Wi-Fi data rate is up to 72.2Mbps. ? Built-in 3G/4G modem and SIM slot, support LTE-TDD/LTE-FDD, WCDMA/CDMA and GSM
networking, compatible with the majority of mobile operators. ? 1* 10/100Mbps LAN
? It can be installed quickly and easily. Just insert your SIM card and share your 3G/4G LTE
Internet connection through a high-speed wireless network
? Support encryption WPA2,WPA-WPA2
- 2 -
Hardware Specification
Product Size 267*160*37mm

Protocols
Comply
IEEE802.11b/g/n, IEEE802.3, IEEE 802.3u
Wi-Fi 2.4GHz:72.2Mbps, 2.412 GHz ~ 2.472 GHz
Ethernet
Ports
1x 10/100M LAN
4G Modem LTE CAT4 MIMO 2*2, Maximum downlink150Mbps and uplink 50Mbps
Power
Supply
DC 12V
SIM Slot 1, Standard 25*15mm
Reset Button 1x Reset button, Restore factory default settings
Antenna 2.4G 5dBi x 1PCS, 4G 5dBi x 2PCS
LED
Indicator
PWR, LAN, WiFi, 4G
Working
Temperature
-20°C~+60°C
Storage
Temperature
-40°C~+80°C
Working
Humidity
10%~95% RH(non-condensation)
Storage
Humidity
10%~95% RH(non-condensat
