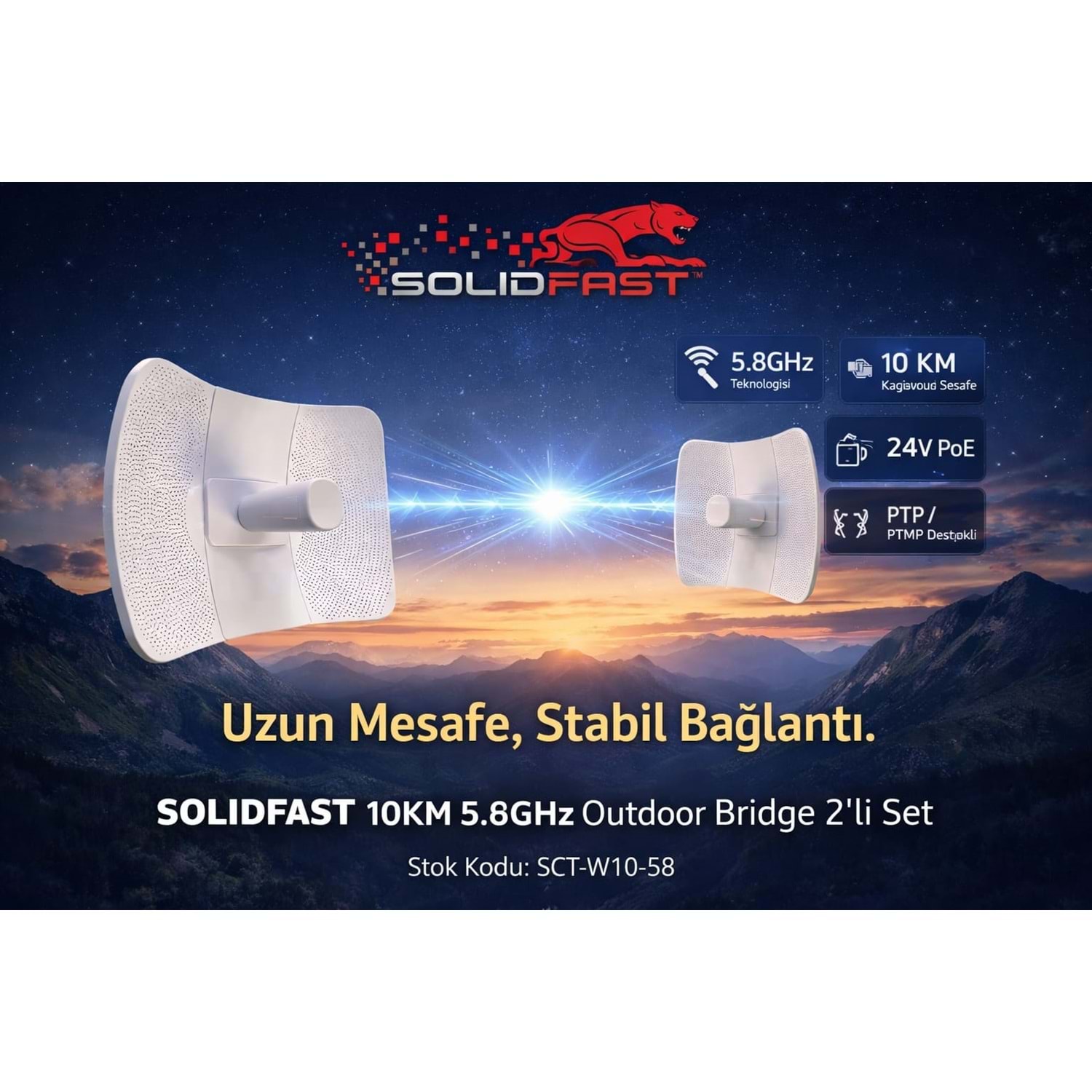

SOLIDFAST 10KM OUTDOOR PTP-PTMP AP-CLIENT-REPEATER 2 Lİ SET ( KUTU İÇERİSİNDE 2 CİHAZ VARDIR)

?IEEE 802.11a/n/ac ,IEEE802.3,IEEE802.3u

?WPA-PSK,WPA2-PSK,WPA-PSK/WPA2-PSK

?1 *10/100Mbps RJ45 LAN 1* LAN input POE 24V

? 5.8GFrequency BAND

?29dbiBuilt in omnidirectional antenna

?DC 12V

?-80°C~+90°C ?Watr proof

Hardware system
Memory DDR2 64MB
FLASH 8MB
PA High Power PA
Wireless parameters Protocol standards IEEE 802.11a/n
Operating frequency bands 5.8G: 5180MHz to 5825MHz
Wireless rate 300Mbps
Transmit power 27dBm ± 2 dBm
Physical interface Network interface 1 10/100Mbps LAN/WAN RJ45 Ethernet port (24V PoE power supported)
Hardware buttons 1 RESET button
Antenna type Antenna type 26dBi double polarized parabolic mesh antenna
Indicator light LED indicator POWER, WAN/LAN, WIFI, 3 lights, in that order
Power/Power consumption Power supply mode 24V PoE power supply
Machine power The < 8 w
Product accessories Mainframe 5.8G High power long distance sector wireless bridge *1
Antenna A set of 5.8G parabolic antennas
Fixed base A set of fixed bases
Power adapter 24V 0.5A PoE power supply
Other Quick Installation Guide *1, Warranty card *1, Certificate *1, Stainless steel hoop *1
Appearance/Packaging Appearance color white.
Product size 400mm*280mm*250m (L*W*H)
Package size 315mm*200mm*165m (L*W*H)
Weight < 2 kg
Other Optimal power distance for PoE cables Within 65 meters (Super Category 5 cable or above)
Bridging distance 0-15 km
IPC with machine capacity 15 way, no stuck, no delay
Installation method Pole installation, wall-mounted installation, bracket installation
Level of protection IP65, 2KV lightning protection
Software Specifications
Network Work mode Wireless bridge, wireless router, Wireless AP, wireless terminal, wireless relay
WAN port access mode PPPoE dialing, dynamic acquisition, fixed IP
MAC address binding Support
Uplink and downspeed display Support
LAN setup Support
DHCP Server support
Wireless Settings Wireless channel modification Supported, support spread spectrum
Bandwidth Settings Support
SSID Hiding Support
Wireless power regulation Support
User isolation Support
User Management Support
Multiple SSIDs Support
Encryption mode WPA2-PSK
Uplink and downlink rate display Support
Systems administration Web interface Configuration Support
System language Chinese/English supported
Manage password changes Support
Firmware upgrades Support
Firmware file import and export Support
Product Description




Product size



Packing list
Name Quantity Units
Bridge host 1 Taiwan
Center reflector plate 1 a
Side reflector plate 2 a
Fixed base 1 a
Universal ball head 1 a
Universal ball nut 1 a
Waterproof cover for network port 1 a
Stainless steel hold hoop 1 a
24V PoE power supply 1 a
Wall mounted bottom plate 1 a
Screws 1 package
Quick installation Guide 1 Copy of the
Warranty card 1 Copy of the
Certificate of conformity 1 Copy of the




Product application
1, wireless monitoring transmission point-to-point application 1






Two, wireless monitoring transmission point-to-point application 2



Third, Internet of Things data transmission application






4. Internet wireless transmission application 1




5. Internet wireless transmission Application 2
