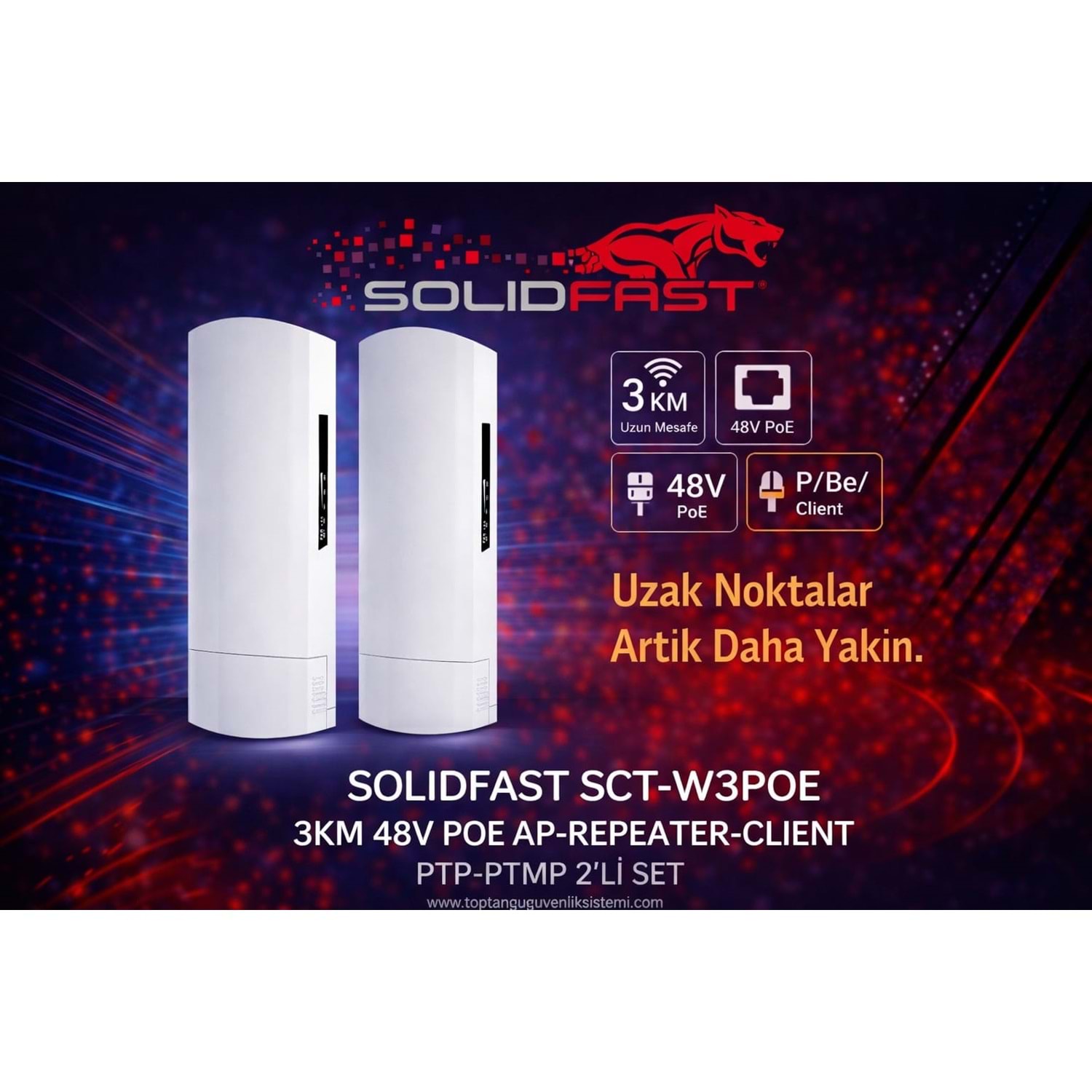

SOLIDFAST 3KM 48V POE AP-REPEATER-CLIENT PTP-PTMP 2 Lİ SET

1 port 48VOLT POE IN 4xPORT 48V POE OUT ÇIKIŞI

-IEEE 802.11b/g/n ,IEEE802.3

-WPA-PSK,WPA2-PSK,WPA-PSK/WPA2-PSK

-5.8GHz 300Mbps

-5 *10/100Mbps RJ45 LAN

-1* LAN input POE
48V 4*Ports output POE 48V

- 5.8GFrequency

-DC 48V-2A , RJ45 input POE 4

*-80°C~+90°C ?Watr proof

Hardware Specification

Standards Comply IEEE802.11a/n, IEEE802.3u, IEEE 802.3x
DDR 64Mbyte
FLASH 8Mbyte
Power Supply DC 48V or PoE 48V power input on LAN1 optional
CPU Frequency 533MHz
Antenna Internal 12dBi directional panel dual-polarization antenna
(horizontal beam 60º, Vertical beam 25º)
Antenna type 2×2 (2Tx,2 Rx)
Ethernet Ports 5 10/100Mbps RJ45 LAN Ports
Reset Button 1x Reset button
Firmware Upgrade Through Web and TFTP
LED Indicator POWER, WLAN, LAN, RSSI1, RSSI2, RSSI3
Data Transfer Rate 300Mbps
Transmission Type DSSS
Modulation Type OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
RF Frequency range 5.180 GHz ~ 5.850 GHz (Channel 36~165)
DC Interface DC 48~52V input
RF Power 23dBm
Product Size 230*106*37mm
Environmental Requirement
Working Temperature -30~+70?C
Working Humidity 10%~90% RH (non-condensation)
Storage Temperature -40~+80?C
Storage Humidity 5%~90% RH (non-condensation)
Lightning Protection Common mode 1.5KV, differential mode 1KV
Environmental Standards RoHs Complianc
